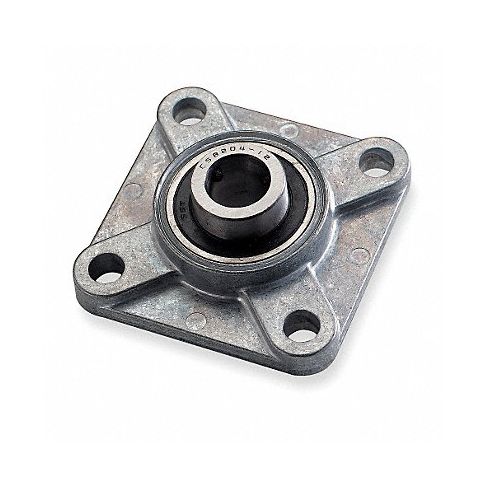

4 Bolt Flange Brg Radial Ball 5/8in Bore MPN:1F550
The 4 Bolt Flange Brg Radial Ball with a 5/8inch bore is widely used across numerous industries due to its versatility and robustness. Its compact design makes it suitable for tight spaces while delivering exceptional load distribution evenly. The stainless steel construction ensures that it is corrosion-resistant, allowing it to be used in wet environments without the need for frequent maintenance or replacement. This component sees extensive use in aerospace applications given its ability to withstand high vibrations and rigorous operational conditions while maintaining stability throughout. Moreover, the machine tool industry leverages this component for accurate positioning due to its durable construction and precision. In automotive engineering, 4 Bolt Flange Brg Radial Ball is used in manufacturing automobile wheels owing to its capacity for high load-bearing capacity. All in all, the components wide-ranging use can be attributed to its dependability, affordability, and robustness making it an essential component in various industries requiring rigorous performance.
Technical Specifications
- Item 4-Bolt Flange Bearing
- Mounted Bearing Item 4-Bolt Flange Bearing
- Bearing Insert Type Ball
- Bore Dia. 5/8 in
- Shaft Locking Type Set Screw
- Bearing Housing Material Type Zinc Die Cast
- Bearing Insert Material 52100 Chrome Steel
- Bolt Hole Center-to-Center 2 1/8 in
- Series F4DC-BL
- Bolt Size 3/8 in
- Overall Height 1 1/32 in
- Overall Width 3 in
- Overall Length 3 in
- Dynamic Load Capacity 2,152 lb
- Static Load Capacity 1,075 lb
- Temp. Range -30 Degrees to 200 Degrees F
- Finish None
- Includes (2) Set Screws
- Dimension B 3 in
- Dimension C 2 1/8 in
- Dimension D 1 7/8 in
- Dimension E 2 1/8 in
- Dimension F 1 1/32 in
- Dimension H 3/8 in
- Dimension J 3/8 in
- Dimension L 1 1/32 in
Manufacturer Details
- Manufacturer: Dayton
- Condensed Mfg Number: 1F550
- MPN: 1F550
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8483204040
- GDS Category Name: Flange Mount Bearings
- GDS Family Name: Bearings
- GDS Segment Name: Power Transmission
- UNSPSC: 31171501
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Bearings
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: Flanged bearings
- UNSPSC Family ID: 17
- UNSPSC Family Name: Bearings and bushings and wheels and gears
- UNSPSC Segment ID: 31
- UNSPSC Segment Name: Manufacturing Components and Supplies
Shipping Details
- Not For Sale In: HI AK PR
