Water Proof Limit Switch MPN:E1092-555

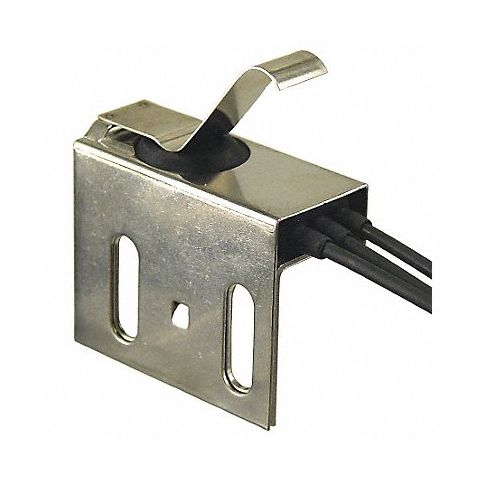

Water Proof Limit Switch
Introducing the Water Proof Limit Switch from Cpi, perfect for harsh environments! Designed with sealed wiring, submersible capability, large overtravel capability, and adjustable mounting brackets, this limit switch is made to last. It features 1-way vertical and horizontal movement, making it versatile and ideal for a variety of applications. With its stainless steel bracket, durability is ensured. The Water Proof Limit Switch can be used in both indoor and outdoor settings and offers a long lifespan, providing dependable performance day after day. Upgrade your machinery with this high-quality limit switch from Cpi and experience the benefits for yourself!
Top product features:
- Sealed wiring
- Submersible capability
- Large overtravel capability
Top product applications:
- Water treatment plants
- Sewage systems
- Chemical processing industries
Developed for harsh environments, this waterproof limit switch features sealed wiring, submersible capability, large overtravel capability, and adjustable mounting brackets. It features 1-way vertical and horizontal movement. It also includes a stainless steel bracket.
Technical Specifications
- Limit Switch Style Water Proof Limit Switch
- Basic Actuator Style - Limit Switch Lever
- Actuator Style - Limit Switch Leaf, Lever
- Actuator Location - Limit Switch Top
- AC Contact Rating - Limit Switch 5A @ 120V
- DC Contact Rating - Limit Switch 5A @ 28V
- Contact Form- Switches SPDT
- Actuator Length - Limit Switch 0.81 in
- Body Height - Limit Switch 1.53 in
- Body Width - Limit Switch 1.75 in
- Body Depth - Limit Switch 0.97 in
- Boot Sealed Actuator - Limit Switch No
- Mounting - Limit Switch Side Flange
- Body Style - Limit Switch Miniature
- NEMA Rating No NEMA Rating
- Wiring Entry Not Applicable
- Electrical Connection Flying Leads
- IP Rating 68
- Movement One Way Vertical and Direction Horizontal
- Travel 0.69 in Maximum
- Series E1
- Operating Temp. Range -40 Degrees to 185 Degrees F
- Mounting Hole Pattern - Limit Switch 2 Hole Horizontal
- Mounting Hole Spacing - Limit Switch 1.00 in
- Mounting Hole - Limit Switch (2) 0.22 in x 0.50 in Slot
- Stem Thread - Limit Switch No Stem
- Arm Width 0.44 in
- Roller Material Stainless Steel
- Roller Dia. 0.38 in
- Roller Width 0.44 in
- Body Material Stainless Steel and TPR
- Arm Material Stainless Steel
Manufacturer Details
- Manufacturer: CPI
- Condensed Mfg Number: E1092555
- MPN: E1092-555
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8536509055
- GDS Category Name: Limit / Interlock Switches
- GDS Family Name: Switches
- GDS Segment Name: Electrical
- UNSPSC: 39121509
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Switches and controls and relays and accessories
- UNSPSC Commodity ID: 09
- UNSPSC Commodity Name: Limit switches
- UNSPSC Family ID: 12
- UNSPSC Family Name: Electrical equipment and components and supplies
- UNSPSC Segment ID: 39
- UNSPSC Segment Name: Electrical Systems and Lighting and Components and Accessories and Supplies
Shipping Details
- Not For Sale In: HI AK PR
