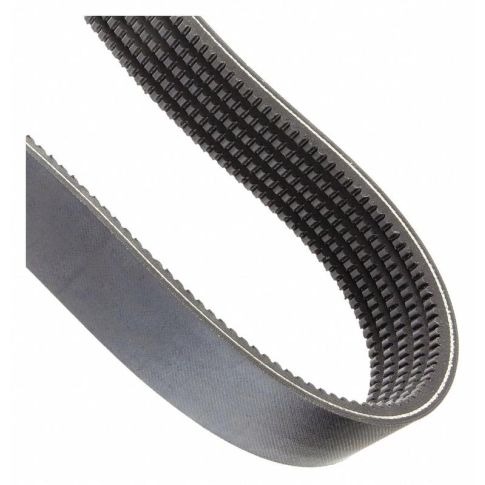

Banded Cogged V-Belt 5/BX97 100in MPN:5/BX97
SKU
226-CXG-459C92
Banded Cogged V-Belt 5/BX97 100in
Introducing Continental's superior line of Banded Cogged V-Belt - ideal for demanding industrial applications requiring high-strength and high-horsepower capacity. The BX 5 rib design delivers maximum longitudinal flexibility, lateral strength, and resistance to heat, oil, ozone, and abrasion. The tough fabric backing ensures durability under dynamic forces, making it suitable for pulsating loads, high-capacity drives, and short center heavy-duty drives. Invest in Continental's Banded Cogged V-Belt today, and experience the unbeatable performance and reliability that distinguishes Continental as an industry leader.
Top product features:
- High-strength and high-horsepower capacity for demanding industrial applications
- Tough fabric backing provides maximum longitudinal flexibility and lateral strength to withstand dynamic forces
- Static conductive, resistant to heat, oil, ozone, and abrasion for enhanced durability
Top product applications:
- Power transmission in industrial drives and machinery that require high-horsepower capacity and strength
- Pulsing or intermittent power applications where belt strength and durability are key factors
- Short center heavy-duty drive systems that demand increased lateral strength, heat resistance, and abrasion resistance
The Continental Contitech HY-T® Torque Team® V-belt is designed and built to deliver superior performance. The BX 5 rib belt provides high-strength and high-horsepower capacity. The tough fabric backing provides the maximum longitudinal flexibility and lateral strength to withstand the dynamic forces acting on the belt. Static conductive and resistant to heat, oil, ozone, and abrasion. Ideal for pulsating loads, high-capacity drives, and short center heavy-duty drives.
Technical Specifications
- Item Banded Cogged V-Belt
- V-Belt Type Banded Cogged V-Belt
- V-Belt Section BX
- Industry Number 5/BX97
- Number of Ribs 5
- Outside Length 100 in
- Top Width 3 19/64 in
- Thickness 13/32 in
- Material Polybutadiene
- Construction Cogged, Raw Edge, Reinforced Tie Band
- Temp. Range -40 Degrees to 230 Degrees F
- Resists Heat, Oil
- For Use With Multiple Belt Systems
Manufacturer Details
- Manufacturer: Continental
- Condensed Mfg Number: 5BX97
- MPN: 5/BX97
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: MX
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 4010333000
- GDS Category Name: V-Belts
- GDS Family Name: Power Transmission Belts
- GDS Segment Name: Power Transmission
- UNSPSC: 26111801
- UNSPSC Class ID: 18
- UNSPSC Commodity Name: Drive components
- UNSPSC Commodity ID: 01
- UNSPSC Commodity Name: V belts
- UNSPSC Family ID: 11
- UNSPSC Family Name: Batteries and generators and kinetic power transmission
- UNSPSC Segment ID: 26
- UNSPSC Segment Name: Power Generation and Distribution Machinery and Accessories
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on November 17, 2023 12:17pm UTC
Category: Power Transmission Belts
