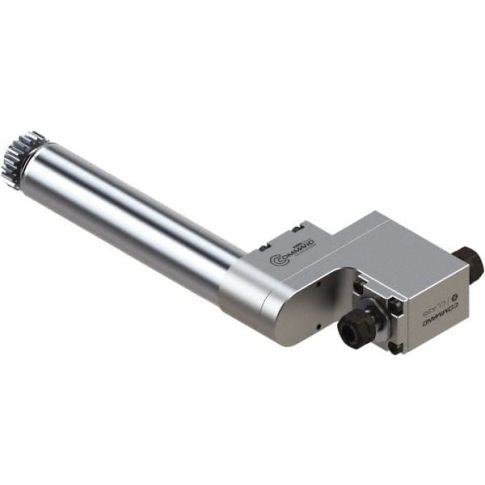

Collet Chuck: 0.2 to 7 mm Capacity, ER Collet, 32 mm Shank Dia, Swiss Citizen Shank MPN:LCR2P1101
Collet Chuck: 0.2 to 7 mm Capacity, ER Collet, 32 mm Shank Dia, Swiss Citizen Shank
Command Tooling presents a Swiss Citizen shank collet chuck, designed to handle ER11 collets with precision. With an adjustment range from 0.2-7mm, it can accommodate various diameters of tooling, allowing versatile usage in manufacturing industries. This collet chuck is perfect for workpieces that require tight tolerances and smooth finishes. Features include a balanced design up to 8,000 RPM and a projection length of 3.425 inches. Its sturdy construction and easy-to-use collet system make it ideal for various applications such as machining, grinding, and cutting operations.
Top product features:
- Swiss Citizen shank for increased durability and precision
- Adjustment range of 0.2-7mm to accommodate various diameters of tooling
- Balanced design up to 8,000 RPM for high-speed usage
Top product applications:
- Machining operations that require tight tolerances and smooth finishes
- High-speed drilling and tapping applications
- Workpieces made of difficult to machine materials like titanium, aluminum or stainless steel.
Collet Chuck: 0.2 to 7 mm Capacity, ER Collet, 32 mm Shank Dia, Swiss Citizen Shank 3.425" Projection, Balanced to 8,000 RPM
Product Information
- : LCR2P1101
- Collet Series: ER11
- Collet System: ER
- Maximum Collet Capacity (Decimal Inch): 0.2750
- Maximum Collet Capacity (mm): 7.00
- Maximum Rpm: 8000
- Minimum Collet Capacity (Decimal Inch): 0.0070
- Minimum Collet Capacity (mm): 0.20
- Overall Length (Decimal Inch): 9.9200
- Overall Length (mm): 252.00
- Product Service Code: 5136
- Projection (Decimal Inch): 3.4250
- Projection (mm): 87.00
- Shank Diameter (Decimal Inch): 1.2590
- Shank Diameter (mm): 32.00
- Shank Type: Swiss Citizen
- Through Coolant: No
- Tir (mm): 0.0020
Additional Information
- Hazardous Materials: No, oK to Ship Via Air
- Material Safety Data Sheet (MSDS) Required: No
- Country of Origin: IN, India
- TAA Compliant: No
- UNSPSC: 27112808
- CA Restricted (Prop 65): Unknown
- Package Length: 7.00
- Package Width: 13.00
- Package Height: 5.00
- Package Weight: 10.00
- Prohibited States: AK,HI,PR
Related ASINs: B07KCCVXQ2, B07G86J25L, B07XR1DFPV
Product info last updated on October 24, 2024 5:30am UTC Category: Collet Chucks and Accessories
