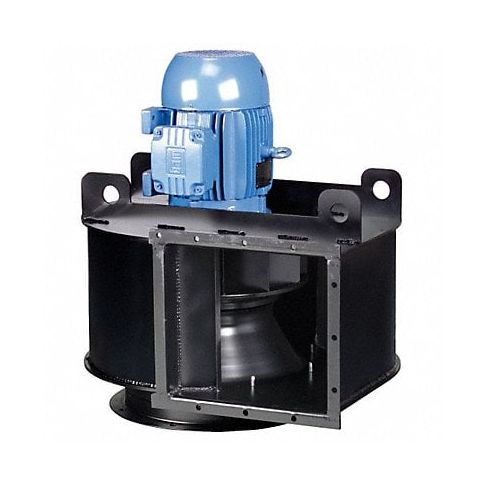

High Pressure Blower 3 Phase 10 HP MPN:165-10HP

Technical Specifications

• Item High Pressure Blower
• Type Backward Incline
• Wheel Dia. (In.) 16 1/2 in
• Voltage 230/460
• Motor HP 10 hp
• CFM @ 1.000-In. SP 6330
• CFM @ 2.000-In. SP 6147
• CFM @ 3.000-In. SP 5960
• CFM @ 4.000-In. SP 5771
• CFM @ 5.000-In. SP 5577
• CFM @ 6.000-In. SP 5368
• CFM @ 7.000-In. SP 5146
• CFM @ 8.000-In. SP 4869
• CFM @ 9.000-In. SP 4575
• CFM @ 10.00-In. SP 4267
• CFM @ 11.00-In. SP 3905
• dBA @ 5 Feet 91
• Max. Inlet Temp. (Deg. F) 150 Degrees F
• Max. Ambient Temp. (F) 120 Degrees F
• Phase 3
• Hz 60
• Full Load Amps 11.5 A
• Motor Type Three Phase
• Motor HP Range 10
• Motor RPM 3,600 RPM
• Motor Enclosure Totally Enclosed Fan-Cooled
• Motor Insulation Class F
• Motor Frame 215T
• Blower RPM 3,500
• Max. Blower RPM 3,600
• Bearing Type Regreasable Ball
• Housing Height (In.) 33 in
• Housing Width (In.) 29 7/8 in
• Housing Length (In.) 32 1/2 in
• Discharge Height (In.) 11 1/4 in
• Discharge Width (In.) 18 7/16 in
• Inlet Dia. (In.) 17 5/8 in
• Wheel Width (In.) 5 7/8 in
• Rotation CW
• Shaft Dia. (In.) 1 3/8 in
• Wheel Material Steel
• Housing Material Steel
• Housing Finish Enamel Paint

Manufacturer Details

• Manufacturer: Chicago Blower
• Condensed Mfg Number: 16510HP
• MPN: 165-10HP

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414802015
• GDS Category Name: Centrifugal Blowers with Motor
• GDS Family Name: Industrial Blowers and Accessories
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 40101601
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air circulation and parts and accessories
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Blowers
• UNSPSC Family ID: 10
• UNSPSC Family Name: Heating and ventilation and air circulation
• UNSPSC Segment ID: 40
• UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components

Shipping Details

• Not For Sale In: HI AK PR
