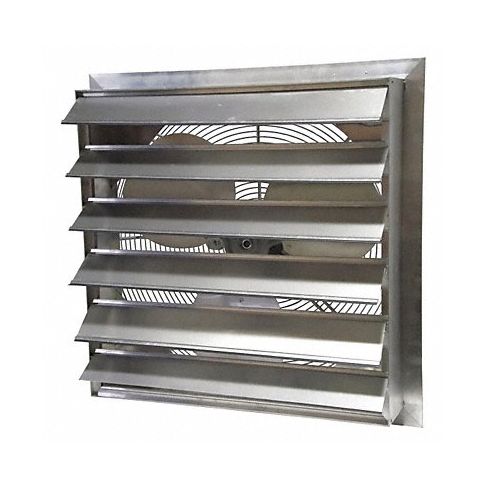

ShtMt Hzd ExhFn 24In Bl Alm 115/208-230V MPN:AX24-4
ShtMt Hzd ExhFn 24In Bl Alm 115/208-230V
Canarm's Shutter Mounted Explosion Proof Exhaust Fan is designed for heavy duty applications in industrial, commercial and agricultural settings. With its powerful motor, this fan can move large volumes of air to provide optimal ventilation and air circulation. Its explosion proof design makes it safe for use in hazardous locations where there may be the presence of flammable gases or dust. This exhaust fan is ideal for a variety of applications such as commercial kitchens, manufacturing facilities, farm buildings and more. With its robust construction and high performance, Canarm's explosion proof exhaust fan ensures safe and efficient ventilation for your premises.
Top product features:
- Explosion-proof design
- Powerful motor for high air volume movement
- Robust construction for durability
Top product applications:
- Ventilation in hazardous areas such as chemical plants and oil rigs
- Removal of fumes, smoke and heat from commercial kitchens
- Exhausting odors and airborne contaminants in agricultural buildings
Buy Canarm item #AX24-4 to have a positive impact 📈 on our community of Service Disabled Veteran-Owned Business partners.
Technical Specifications
- Item Shutter Mounted Explosion Proof Exhaust Fan
- Type Explosion Proof
- Blade Dia. 24 in
- CFM @ 0.000-In. SP 5,520 cfm
- CFM @ 0.125-In. SP 5,330 cfm
- CFM @ 0.250-In. SP 5,130 cfm
- Sones @ 0.000-In. SP @ 5 Ft. 30
- Fan Voltage 115/208-230V AC
- Drive Package With Motor Included No
- Exhaust/Supply Fan Item Exhaust Fan
- Hz 60
- Phase 1
- Full Load Amps 6.6/3.1-3.3
- Watts 250 W
- Exhaust/Supply Fan Motor HP 1/3 hp
- Bearing Type Ball
- Motor RPM 1,725 RPM
- Motor Type Explosion Proof
- Motor Enclosure Explosion Proof Fan Cooled
- Motor Insulation Class B
- Max. Ambient Temp. (F) 104 Degrees F
- Height (In.) 28 3/4 in
- Width (In.) 28 3/4 in
- Max. Depth (In.) 18 3/4 in
- Outside Dia. (In.) 28 3/4 in
- Venturi Clearance Dia. (In.) 1/8 in
- Venturi Depth (In.) 5/8 in
- Shaft Dia. (In.) 1/2 in
- Mounting Position Horizontal
- Flange Width (In.) 1 1/2 in
- Number of Blades 3
- Propeller Material Aluminum
- Frame Material Heavy Duty Aluminum
- Frame Finish Powder Coated
- Agency Compliance cETLus
- For Use With General Ventilation Applications, Hazardous Locations, Explosion Proof, Shutter Mounted Exhaust Fan
- Includes Aluminum Blades, Aluminum Housing, EPFC Motor Enclosure, Explosion Proof Motor, Shutters, Wire Chrome Plated Guard
- Hazardous Location Class 1 C,D / 2 F,G
Manufacturer Details
- Manufacturer: Canarm
- Condensed Mfg Number: AX244
- MPN: AX24-4
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CA
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8414596595
- GDS Category Name: Axial Exhaust and Supply Fans with Motor
- GDS Family Name: Exhaust Fans
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 40101502
- UNSPSC Class ID: 15
- UNSPSC Commodity Name: Ventilation
- UNSPSC Commodity ID: 02
- UNSPSC Commodity Name: Air exhausters
- UNSPSC Family ID: 10
- UNSPSC Family Name: Heating and ventilation and air circulation
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on July 11, 2025 5:30am UTC
