Mechanical Lug, 1 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper MPN:QDA1C
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4697637

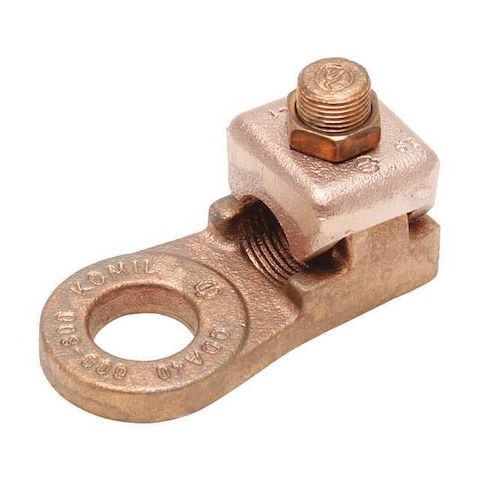

Mechanical Lug, 1 AWG Max, 1 Conductor, 1 Hole, 3/8 in Stud, Copper
The Burndy Mechanical Lug is a reliable and efficient connector for stranded copper wires. Suitable for use with copper conductors, this lug is ideal for applications requiring a secure and durable connection. Its 3/8 inch stud size and 1/4 inch hole diameter accommodate a range of wire sizes, from 4 AWG to 1 AWG. The lug's copper body and hex head design provide excellent conductivity and ease of installation. With a maximum operating temperature of 194°F and a maximum voltage of 600V, this connector is perfect for use in a variety of electrical applications, including industrial, commercial, and residential settings.
Top product features:
- Connects one copper conductor to a 3/8 inch stud
- Accepts stranded copper wire sizes from 4 AWG to 1 AWG
- Operates at temperatures up to 194 degrees Fahrenheit and voltages up to 600 V
Top product applications:
- Electrical Wiring for Residential Construction
- Busbars for Industrial Control Systems
- Cable Connectors for Aerospace Applications
Mechanical Connector, For Conductor Material Copper, For Stranded Copper Wire Size - Minimum 4 AWG, For Stranded Copper Wire Size - Maximum 1 AWG, For Stud Size 3/8 in, Head Style Hex Head, Number of Holes 1, Hole Diameter 0.44 in, Hole Spacing Not Applicable, Body Material Copper, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Conductors 1, Number of Terminations 1, Tongue Length Not Applicable, Tongue Width 1 in, Tongue Thickness 0.28 in, Connector Type Terminal
Additional Information
- Country of Origin: MX
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 2.20
- Package Width: 1.00
- Package Height: 1.10
- Package Weight: 0.20
Product info last updated on May 11, 2026 2:03am UTC
Category: Electrical Connectors
