Thrust Wshr, 5/16in Bore, 5/8in OD, Bronze MPN:EBTW051002
Discount: See in Cart
Out Of Stock
Out Of Stock
SKU
510-G5908519

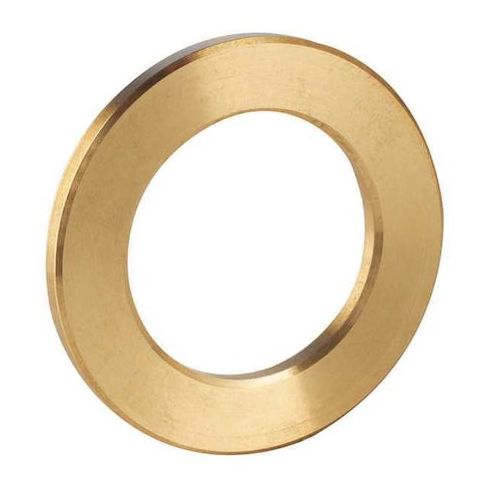

Thrust Wshr, 5/16in Bore, 5/8in OD, Bronze
This thrust washer is designed for use in high-temperature applications, with a maximum temperature rating of 400°F and a minimum temperature rating of -40°F. Made from lead-free cast bronze, it provides corrosion resistance and can withstand heavy loads. With a maximum PV of 100,000 lb/sq in-fpm, it is suitable for use in a variety of applications, including industrial machinery, pumps, and valves. Its small size and high load capacity make it an ideal choice for use in tight spaces and high-performance systems, where reliability and durability are critical.
Top product features:
- Lead-Free Cast Bronze construction
- Corrosion Resistant due to material properties
- Lubricated with SAE 50 Oil for reduced friction
Top product applications:
- Pump shaft seals
- Gearbox shaft seals
- Motor shaft seals
Thrust Washer, Bore Diameter 5/16 in, Bronze Material Type Lead-Free Cast Bronze, Lubricant Material SAE 50 Oil, Material Group Metallic, Maximum Temperature 400 Degrees F, Minimum Temperature -40 Degrees F, Outside Diameter 5/8 in, Plain Bearing Material Bronze, System of Measurement Inch, Washer Thickness 0.125 in, Material Grade C87850, Maximum PV 100,000 lb/sq in-fpm, Resistance Properties Corrosion Resistant, Standards ASTM B505, Lead-Free, RoHS Certified, Thickness Tolerance +/-0.005 in
Additional Information
- Country of Origin: US
- Drop Ship Item: Yes
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 7 days
- Minimum Order Quantity: 2
- Unit of Measure: EA
- Package Length: 10.00
- Package Width: 4.00
- Package Height: 0.50
- Package Weight: 0.01
- California Prop 65 Warning: WARNING: This product can expose you to chemicals including Nickel (Metallic), which is known to the State of California to cause cancer, and Lead, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Product info last updated on February 26, 2026 6:22pm UTC
Category: Bearings, V-belts and Power Transmission Equipment
