Pin & Sleeve Plug, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated MPN:BRY4100P9W
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G4439158
Pin & Sleeve Plug, 100 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA Not Rated

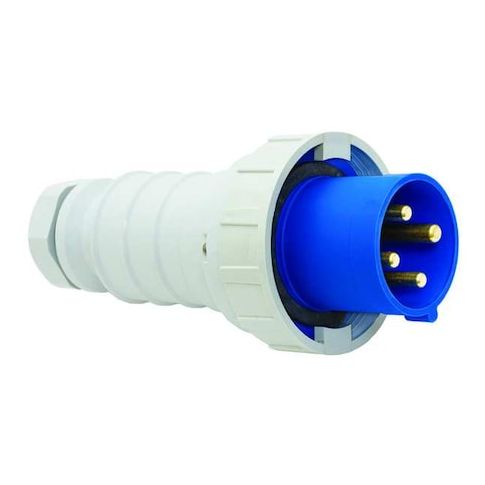

The Bryant Pin & Sleeve Plug is a reliable and versatile solution for three-phase applications, featuring a 100A current rating and 250V AC voltage rating. With a 5hp horsepower rating, it's suitable for a wide range of uses, including industrial equipment and heavy machinery. The plug's IEC grounding style ensures secure connections, while its composite housing provides durability and resistance to environmental factors. Ideal for applications in harsh environments, this plug is rated IP67 and can withstand exposure to dust and water. Its straight connection orientation and screw terminals make it easy to install and connect.
Top product features:
- Three Phase Capability
- Grounding Style IEC
- Maximum Wire Size 1/0 AWG
Top product applications:
- Three Phase Industrial Control Panel
- Heavy Duty Motor Control
- Medium Voltage Power Distribution
Pin and Sleeve Plug, Current Rating 100 A, Horsepower Rating 5 hp, Housing Color Blue, IP Rating IP67, Number of Poles 3, Number of Wires 4, Phase Three, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, Connection Orientation Straight, For Maximum Cable Diameter 1.68 in, For Minimum Cable Diameter 0.9 in, Grounding Grounded, Grounding Style IEC, Housing Material Composite, Maximum Wire Size 1/0 AWG, Minimum Wire Size 3 AWG, NEMA Enclosure Rating Not Rated
Additional Information
- Country of Origin: DE
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 14.00
- Package Width: 8.00
- Package Height: 6.20
- Package Weight: 2.30
Product info last updated on April 8, 2026 6:01pm UTC
Category: Wiring Devices
