Insulated Multitap Connector, 3.88 In. L MPN:AMTD50063
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G0598717

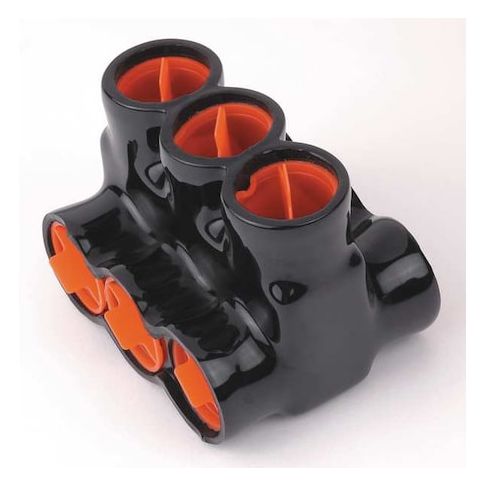

Insulated Multitap Connector, 3.88 In. L
This Insulated Multitap Connector is a reliable and versatile solution for connecting conductors in various applications. Suitable for use with aluminum, copper, and copper-clad aluminum conductors, it features a rugged aluminum body and 3 ports for convenient connections. With a maximum operating temperature of 194°F and voltage rating of 600V, it can withstand demanding conditions. The connector's insulated design and hex head style ensure secure and easy installation. Ideal for use in electrical panels, distribution boards, and other applications where multiple connections are needed, this multitap connector provides a reliable and efficient solution for electrical professionals.
Top product features:
- Insulated for safe handling of electrical conductors
- Connects up to three conductors simultaneously
- Rated for use with stranded copper wire sizes from 6 AWG to 500 kcmil
Top product applications:
- Commercial Electrical Wiring
- Industrial Electrical Wiring
- Marine Electrical Wiring
Insulated Multitap Connector, Body Material Aluminum, Color Black, For Conductor Material Aluminum, Copper, For Stranded Copper Wire Size - Minimum 6 AWG, For Stranded Copper Wire Size - Maximum 500 kcmil, Head Style Hex, Hex Size 3/8 in, Insulation Material PVC, Maximum Operating Temperature 194 Degrees F, Maximum Voltage 600 V, Number of Ports 3, Standards CSA 6591, UL E9809, Compatible with Product Type Aluminum Conductors, Copper Conductors, Copper-Clad Aluminum Conductors
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 4.00
- Package Width: 3.50
- Package Height: 3.50
- Package Weight: 0.80
Product info last updated on January 15, 2026 7:58am UTC
Category: Electrical Connectors
