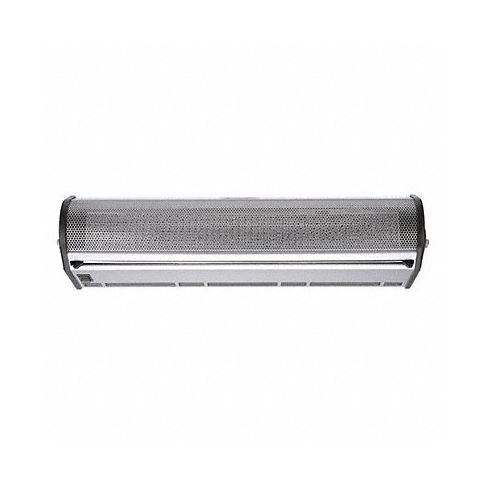

Drive Through Window Air Curtain 135 cfm MPN:DTU03-1018EA
Introducing the Drive Through Window Air Curtain from Berner - the perfect solution for maintaining indoor comfort and repelling insects at drive-up windows. This air curtain effectively eliminates infiltration of fumes and dust while maintaining a stable environment within your establishment. Its heated design helps keep out cold air, while also reducing energy costs. With a max mounting height of 3ft, this air curtain is suitable for most drive-through setups. Equipped with a durable metal housing and universal mounting bracket, this product ensures long-lasting performance in harsh commercial environments. The Drive Through Window Air Curtain offers easy installation and provides reliable, year-round operation that will exceed your expectations.
Top product features:
- Universal mounting bracket
- Heated and unheated models available
- UL and C-UL Listed for indoor use
Top product applications:
- Drive-through restaurants
- Convenience stores
- Pharmacies
Technical Specifications
- Item Heated Drive Through Window Air Curtain
- Air Curtain Max. Door Width 1.5 ft
- Max. Mounting Height 3 ft
- Air Curtain Air Volume 135 cfm
- Air Curtain dBA @ 10 Feet 51
- Width 17 1/4 in
- Height 7 in
- Depth 7 3/4 in
- Number of Motors 1
- Phase 1
- Voltage 115
- Max. Amps 18.3
- Air Curtain Item Drive Through Window Air Curtain
- Air Curtain Heated Yes
- Air Curtain Air Velocity 2800 fpm
- Air Curtain Finish Powder Coated
- Air Curtain Housing Material Aluminum
- Heating kW 2
- Hz 60
- Housing Color Silver
- Motor Type Shaded Pole
- Motor Enclosure Open
- Motor HP 1/12 hp
- Max. RPM 1,625 RPM
- Number of Speeds 1
- Requires 20A Dedicated Circuit
- Standards CUL Indoor Only, UL
- Includes (3) 6 ft Prong Grounded Plug with Factory Wired Fan and Heat On Off Switch
Manufacturer Details
- Manufacturer: Berner
- Condensed Mfg Number: DTU031018EA
- MPN: DTU03-1018EA
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 8516290090
- GDS Category Name: Air Curtains
- GDS Family Name: Ventilation Equipment and Supplies
- GDS Segment Name: HVAC and Refrigeration
- UNSPSC: 27131605
- UNSPSC Class ID: 16
- UNSPSC Commodity Name: Air fittings and connectors
- UNSPSC Commodity ID: 05
- UNSPSC Commodity Name: Air curtain
- UNSPSC Family ID: 13
- UNSPSC Family Name: Pneumatic machinery and equipment
- UNSPSC Segment ID: 27
- UNSPSC Segment Name: Tools and General Machinery
Shipping Details
- Not For Sale In: HI AK PR
