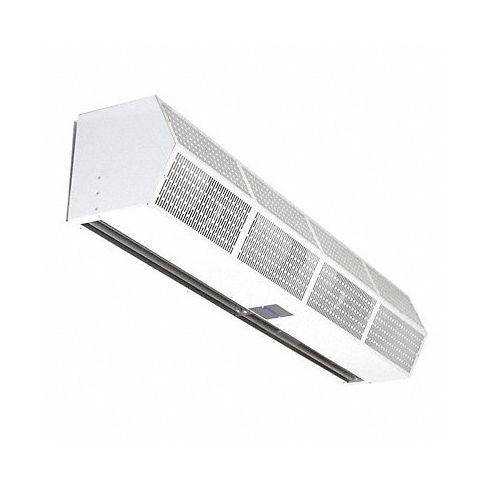

Air Curtain 14 in H 39 in W 13 in D MPN:SHD07-1036AC-P-G

This hardwired, single-phase air curtain replaces plastic strip doors to minimize heat and AC loss to help reduce energy costs. Effectively repels flying insects, dust, and pollutants. Max. door width is 3 ft. UL and C-UL Listed for indoor/outdoor use and UL-EPH Listed to NSF Standard 37.

Technical Specifications

• Item Air Curtain
• Air Curtain Max. Door Width 3 ft
• Max. Mounting Height 7 ft
• Air Curtain Air Volume 1804 cfm
• Air Curtain dBA @ 10 Feet 67
• Width 39 in
• Height 14 3/4 in
• Depth 14 1/2 in
• Number of Motors 1
• Phase 1
• Voltage 115/208-240
• Max. Amps 7.5/3.8 to 3.8
• Air Curtain Item Air Curtain
• Air Curtain Heated No
• Air Curtain Air Velocity 3500 fpm
• Air Curtain Housing Material Aluminum
• Hz 60
• Housing Color White
• Motor Type Permanent Split Capacitor
• Motor Enclosure Totally Enclosed
• Motor HP 3/4 hp
• Max. RPM 1,750 RPM
• Number of Speeds 1
• Requires Hard Wiring
• Standards AMCA, EPH ANSI/NSF 37, UL Indoor, UL Outdoor and CUL Indoor
• Includes Door Limit Switch, Plunger Style for Automatic Operation

Manufacturer Details

• Manufacturer: Berner
• Condensed Mfg Number: SHD071036ACPG
• MPN: SHD07-1036AC-P-G

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8414519060
• GDS Category Name: Air Curtains
• GDS Family Name: Ventilation Equipment and Supplies
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 27131605
• UNSPSC Class ID: 16
• UNSPSC Commodity Name: Air fittings and connectors
• UNSPSC Commodity ID: 05
• UNSPSC Commodity Name: Air curtain
• UNSPSC Family ID: 13
• UNSPSC Family Name: Pneumatic machinery and equipment
• UNSPSC Segment ID: 27
• UNSPSC Segment Name: Tools and General Machinery

Shipping Details

• Not For Sale In: HI AK PR
