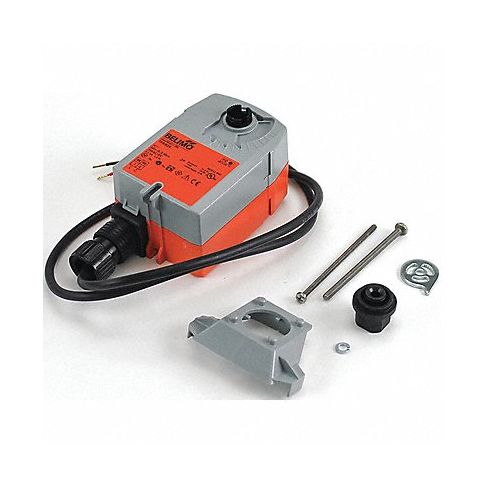

Actuator Spring Return 24V On/Off MPN:TFRB24

Designed for on/off control of dampers in HVAC systems, this BELIMO spring return actuator has a reversible motor. Model is maintenance free and does not require any limit switches, but is electronically protected against overload.

• Overload protection: electronic throughout 0° to 95° rotation
• Housing: NEMA 2, IP42, UL Enclosure Type 2

Technical Specifications

• Item Actuator, Spring Return, 24V On/Off
• Spring Return Yes
• Torque 22 in-lb
• Stroke Deg. 0 to 95
• Height 6 9/32 in
• Width 3 3/64 in
• Depth 2 13/32 in
• Signal Type On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 75 sec
• Voltage 24V AC/DC
• Power Rating 2.5W

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: TFRB24
• MPN: TFRB24

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
