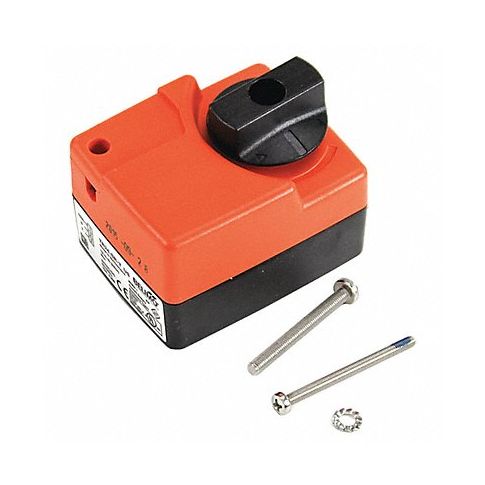

Return Proportional Actuator NonSpring MPN:TR24-SR-T

For the proportional modulation of dampers in HVAC systems, this BELIMO non-spring return damper actuator mounts directly to the damper shaft. Model has a reversible motor and does not require any limit switches, but is electronically protected against overload.

• Overload protection: electronic throughout full rotation
• Housing: NEMA type 1 / IP40

Technical Specifications

• Item Return Proportional Actuator, NonSpring
• Spring Return No
• Stroke Deg. 0 to 90
• Height 3 1/4 in
• Width 2 1/2 in
• Depth 2 13/16 in
• Signal Type Proportional
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 90 sec
• Voltage 24V AC/DC
• Power Rating 0.5W

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: TR24SRT
• MPN: TR24-SR-T

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8501104080
• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
