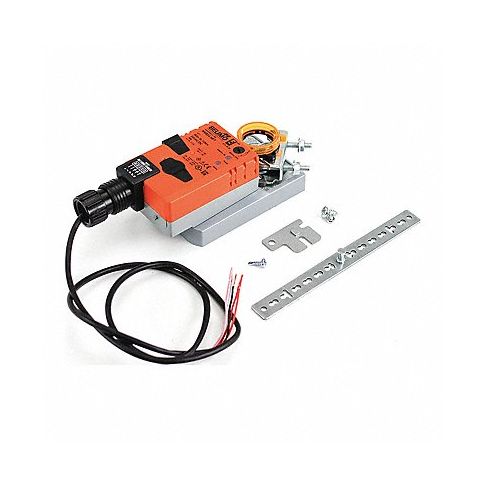

Return Actuator 24V Non-Spring 70in-lb. MPN:NMB24-MFT

For the proportional modulation of dampers in HVAC systems, this BELIMO return actuator, 24V, non-spring, 70"-lb. is mounted directly to a damper shaft up to 1.05” dia. by means of its universal clamp, 1/2” self centered default. Actuator uses a sensorless brushless DC motor that’s controlled by an Application Specific Integrated Circuit (ASIC). The ASIC can monitor and control the actuator’s rotation and it provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition.

Technical Specifications

• Item Return Actuator, 24V, Non-Spring, 70"-lb.
• Spring Return No
• Shaft Type 1/2 in to 1-3/64 in Round or 13/32 in to 1-3/64 in Square
• Torque 90 in-lb
• Stroke Deg. 0 to 95
• Height 7 45/64 in
• Width 3 5/32 in
• Depth 2 27/64 in
• Signal Type MFT
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 150 sec
• Voltage 24V AC/DC
• Power Rating 3.5W

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: NMB24MFT
• MPN: NMB24-MFT

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
