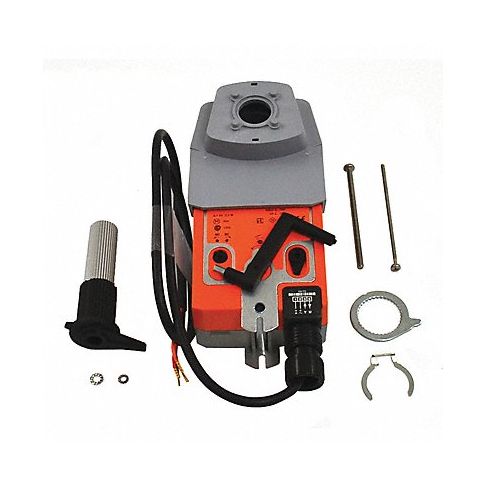

Spring Return Control Valve Actuator MPN:AFRB24-SR

This BELIMO spring return control valve actuator is direct coupled and requires no crank arm or linkage. Model provides proportional damper control in response to a 2 to 10VDC or, with the addition of a 500 O resistor (not included), a 4 to 20 mA control input from an electronic controller or positioner. Actuator can be used for either clockwise or counterclockwise fail-safe operation. Model uses a brushless DC motor controlled by a microprocessor and protected from overload at all angles of rotation.

Technical Specifications

• Item Spring Return Control Valve Actuator
• Spring Return Yes
• Torque 180 in-lb
• Stroke Deg. 0 to 95
• Height 9 49/64 in
• Width 4 3/64 in
• Depth 3 15/16 in
• Signal Type On/Off
• Motor Direction CW or CCW
• Ambient Temp. Range -22 Degrees to 122 Degrees F
• Timing 95 sec
• Voltage 24V AC/DC
• Power Rating 5.5W
• Includes Mounting Hardware

Manufacturer Details

• Manufacturer: Belimo
• Condensed Mfg Number: AFRB24SR
• MPN: AFRB24-SR

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 8481809020
• GDS Category Name: Electric Actuators
• GDS Family Name: HVAC Controls and Thermostats
• GDS Segment Name: HVAC and Refrigeration
• UNSPSC: 31251501
• UNSPSC Class ID: 15
• UNSPSC Commodity Name: Actuators
• UNSPSC Commodity ID: 01
• UNSPSC Commodity Name: Electric actuators
• UNSPSC Family ID: 25
• UNSPSC Family Name: Pneumatic and hydraulic and electric control systems
• UNSPSC Segment ID: 31
• UNSPSC Segment Name: Manufacturing Components and Supplies

Shipping Details

• Not For Sale In: HI AK PR
