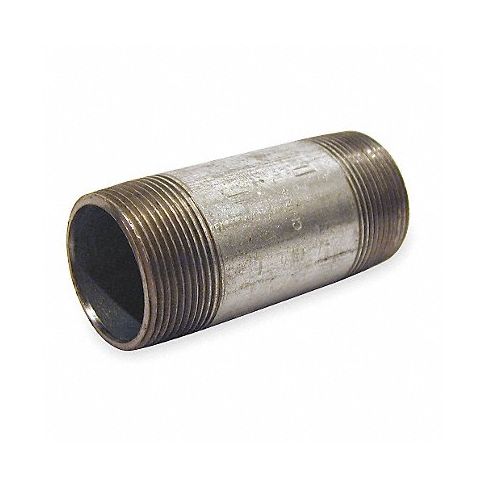

Pipe Nipple 3/4 . 8-1/2 . Galv Steel MPN:0331022004
SKU
226-CXG-29VG52
Pipe Nipple 3/4 . 8-1/2 . Galv Steel
Pipe nipples made of galvanized steel and measuring 3/4 inch outer diameter with a length of 8-1/2 inches provide a versatile and cost-effective solution for various industries. Key specifications include corrosion resistance, pressure rating up to 200 PSI, and a yellow zinc coating that prevents oxidation. Available in both seamless and welded constructions, pipe nipples offer ease of installation and compatibility with a wide range of piping systems. Their popular applications include HVAC, plumbing, irrigation, and industrial processes where durability and corrosion resistance are crucial.
Has a weld bead inside, is NPT threaded at both ends, and resists rust and corrosion. For low-pressure plumbing applications including air, water, oil, natural gas, and steam. Certified for use in potable water applications. Threads conform to ANSI B1.20.1 standards. Material conforms to ASTM A-53 Type E, Grade A standards. Manufacturing conforms to ASTM A-733 standards.
Technical Specifications
- Item Nipple
- Pipe Connection Type Threaded on Both Ends
- Pipe Type Pipe Nipple
- Pipe Schedule 40
- Material - Pipe Galvanized Steel
- Pipe Weld Type Continuous Weld
- Pipe Size - Nominal 3/4 in
- Overall Pipe Length 8.5 in
- Pipe Thread Type MNPT x MNPT
- Max. Pressure 150 psi @ 150 Degrees F
- Inside Dia. (In.) 0.824 in
- Outside Dia. (In.) 1.05 in
- Wall Thickness (In.) 0.113 in
- Metal Detectable Yes
- Standards ASTM A-53 Type F, ASTM A733, Grade A
Manufacturer Details
- Manufacturer: Beck
- Condensed Mfg Number: 0331022004
- MPN: 0331022004
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307995015
- GDS Category Name: Metal Pipe and Pipe Nipples
- GDS Family Name: Pipe and Tubing
- GDS Segment Name: Plumbing
- UNSPSC: 40142318
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 18
- UNSPSC Commodity Name: Pipe nipples
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
