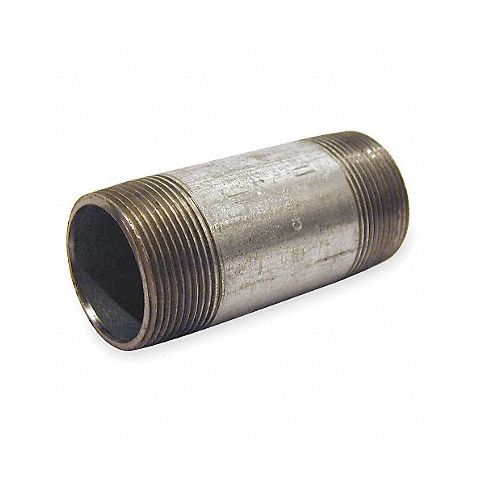

Pipe Nipple 1/4in. 5 1/2in Galv Steel MPN:0331006809
SKU
226-CXG-29VF75
Pipe Nipple 1/4in. 5 1/2in Galv Steel
The pipe nipple made from galvanized steel with dimensions of 1/4 outer diameter and 5-1/2 length is designed for making threaded connections in plumbing, mechanical or chemical systems. Its durability provides corrosion resistance against various applications like irrigation, construction sites or water treatment facilities ensuring long-lasting usage with ease of installation by utilizing standard threads. Typical users include plumbers, engineers, technicians involved in construction and maintenance projects benefiting from the cost-effective materials that promote sustainable practices.
Has a weld bead inside, is NPT threaded at both ends, and resists rust and corrosion. For low-pressure plumbing applications including air, water, oil, natural gas, and steam. Certified for use in potable water applications. Threads conform to ANSI B1.20.1 standards. Material conforms to ASTM A-53 Type E, Grade A standards. Manufacturing conforms to ASTM A-733 standards.
Technical Specifications
- Item Nipple
- Pipe Connection Type Threaded on Both Ends
- Pipe Type Pipe Nipple
- Pipe Schedule 40
- Material - Pipe Galvanized Steel
- Pipe Weld Type Continuous Weld
- Pipe Size - Nominal 1/4 in
- Overall Pipe Length 5.5 in
- Pipe Thread Type MNPT x MNPT
- Max. Pressure 150 psi @ 150 Degrees F
- Inside Dia. (In.) 0.364 in
- Outside Dia. (In.) 0.54 in
- Wall Thickness (In.) 0.088 in
- Metal Detectable Yes
- Standards ASTM A-53 Type F, ASTM A733, Grade A
Manufacturer Details
- Manufacturer: Beck
- Condensed Mfg Number: 0331006809
- MPN: 0331006809
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 7307995015
- GDS Category Name: Metal Pipe and Pipe Nipples
- GDS Family Name: Pipe and Tubing
- GDS Segment Name: Plumbing
- UNSPSC: 40142318
- UNSPSC Class ID: 23
- UNSPSC Commodity Name: Pipe fittings
- UNSPSC Commodity ID: 18
- UNSPSC Commodity Name: Pipe nipples
- UNSPSC Family ID: 14
- UNSPSC Family Name: Fluid and gas distribution
- UNSPSC Segment ID: 40
- UNSPSC Segment Name: Distribution and Conditioning Systems and Equipment and Components
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on September 26, 2024 1:02pm UTC
Category: Pipe and Tubing
