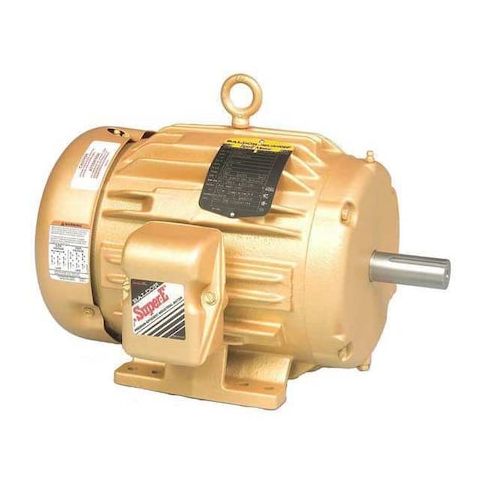

Three-Phase AC Induction Motor, 20 HP, 286T Frame, 230V AC, 460V AC Voltage, 1, 180 Nameplate RPM MPN:EM4102T
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
510-G7085970
Three-Phase AC Induction Motor, 20 HP, 286T Frame, 230V AC, 460V AC Voltage, 1, 180 Nameplate RPM
This 20 HP three-phase AC induction motor from BALDOR-RELIANCE is designed for heavy-duty applications requiring high efficiency and reliability. With a nameplate RPM of 1,180 and a nominal efficiency of 91.7%, this motor is ideal for use in industrial settings, such as manufacturing facilities, warehouses, and distribution centers. The totally enclosed fan-cooled design and cast iron frame ensure durability and long lifespan, while the rigid base motor mounting type provides stability and secure installation. Suitable for use in a variety of applications, including pumps, fans, and conveyor systems, this motor is a reliable choice for demanding industrial environments.
Top product features:
- Totally Enclosed Fan Cooled Motor Enclosure Design
- Ball Motor Bearings
- CCW Motor Shaft Rotation
Top product applications:
- Pumps and fans in industrial settings
- Conveyor systems and material handling equipment
- Power generation and transmission in power plants
AC Induction Motor, Three-Phase, Totally Enclosed Fan Cooled Motor Enclosure Design, 20 HP, Nameplate RPM 1,180, Frame 286T, Voltage 230V AC, 460V AC, 60 Hz Hz, Three Phase, Full Load Amps 56.0/54.0/27.0 A, Rigid Base Motor Mounting Type, Motor Thermal Protection None, Ins. Class F, Motor Service Factor 1.15, Ball Motor Bearings, Motor Frame Material Cast Iron, Max. Ambient Temp. 40 Degrees C, CCW Motor Shaft Rotation, Nominal Efficiency 91.7 Percent, 1,101-1,200, CSA EEV, NEMA Premium, UR
Additional Information
- Country of Origin: US
- Drop Ship Item: No
- Blind Ship Eligible: No
- LTL Freight Required: No
- Lead Time: Ships in 1 days
- Minimum Order Quantity: 1
- Unit of Measure: EA
- Package Length: 32.00
- Package Width: 24.00
- Package Height: 21.00
- Package Weight: 399.00
Product info last updated on February 8, 2026 6:38pm UTC
Category: Motors
