K4222 Compound Gauge 30 Hg to 100 psi 4-1/2In MPN:451259SD04LV/100#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-5RYA0

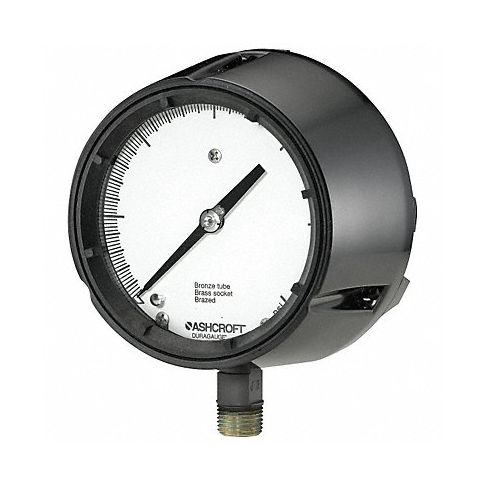

K4222 Compound Gauge 30 Hg to 100 psi 4-1/2In
K4222 Compound Gauge is a versatile pressure measurement tool designed for use in laboratories, research facilities and various industrial settings. This gauge features a durable brass construction with a 4-1/2 dial that reads both in psi (0-100) and kg/cm^2 (0-700). The pressure range extends from 30 Hg to 100 psi, making it suitable for an array of applications involving liquid or gas pressure testing. Its compact size ensures portability, while the durable construction allows for long lasting performance even in harsh environments. This compound gauge is widely used by professionals working in scientific research, quality control, manufacturing, and maintenance industries.
Chemical and Petroleum Process Gauges• 4-1/2" dial Accuracy: ±0.5% Solid front/blowout back housing 1/2" NPT lower connectionGlycerin-filled models vent for atmospheric pressure and temperature compensation and feature Buna N O-ring seal.
Technical Specifications
- Item Compound Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/2 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units in Hg/psi
- Gauge Primary Range Values -30 to 0 to 100
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Compound Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Surface
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 10/10
- Gauge Case Material Phenolic/Thermoplastic
- Gauge Case Color Black
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316L Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316L Stainless Steel
- Gauge Lens Material Glass
- Basic Gauge Lens Material Glass
- Operating Temp. Range -50 Degrees to 150 Degrees F
- For Use With Media Compatible with 316L Stainless Steel
- Calibration Certificate Included No
- Series 1259SD
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 451259SD04LV100
- MPN: 451259SD04LV/100#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: CN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112406
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 06
- UNSPSC Commodity Name: Vacuum gauges
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08WRGLNQX
Product info last updated on September 26, 2024 1:02pm UTC Category: Pressure and Vacuum Measuring
