Sanitary Transmitter 60 psi 1 to 5VDC MPN:KS7S2015HM60#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXO-5LTK7

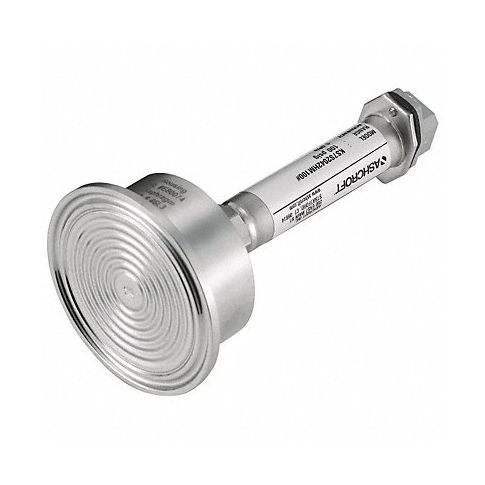

Sanitary Transmitter 60 psi 1 to 5VDC
The sanitary transmitter ensures accurate measurement of pressure changes for effective control and regulation of processes within industries requiring cleanliness such as food processing, pharmaceutical or chemical industries. Its 60 psi capacity enables precise readings in various applications like flow control, mixing tanks, and filtering systems promoting optimal performance ensuring high quality end products. The compact design eases installation within tight spaces allowing continuous operation without interference while its robust construction resists corrosive elements prolonging durability, minimizing downtime for maintenance or repairs, reducing costs and optimizing productivity levels in all assigned tasks.
For use in dairy, food, pharmaceutical, and most 3-A sanitary applications, this sanitary pressure vacuum transducer features 316L stainless steel construction, with an electropolished Tri-Clamp diaphragm. The polysilicon bridge and integral metal diaphragm are unaffected by shock, vibration, or mounting position.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 316 Stainless Steel
- Range Values - Transmitter 0 to 60
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.00%
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 10 to 36V DC
- Process Connection Size - Transmitter 2 in
- Process Connection Type - Transmitter Triclamp
- Output - Transmitter 1 to 5V DC
- Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing Stainless Steel
- NEMA Rating 4X
- Max. Pressure (PSI) 120 psi
- Thermal Error +/-0.04% per / Degrees F (-20 Degrees to 168 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: KS7S2015HM60
- MPN: KS7S2015HM60#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Sanitary Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
Category: Pressure and Vacuum Measuring
