Sanitary Transmitter 300 psi 1 to 5VDC MPN:KS7S1515HM300#
SKU
226-CXO-5LTK4
Sanitary Transmitter 300 psi 1 to 5VDC
Sanitary Transmitter 300 psi 1 to 5VDC is ideal for the pharmaceutical or food & beverage industry that requires hygienic, accurate, and durable components resulting in regulatory compliance and reliable measurement. Its stainless steel construction ensures ease of cleaning while its 300 psi capacity accommodates high-pressure environments promoting cost savings in diverse industries such as manufacturing or hydraulics. Additionally, its 1 to 5VDC output signal enhances compatibility with various control systems making it suitable for diverse projects resulting in long-lasting durability and optimized performance ensuring user satisfaction.

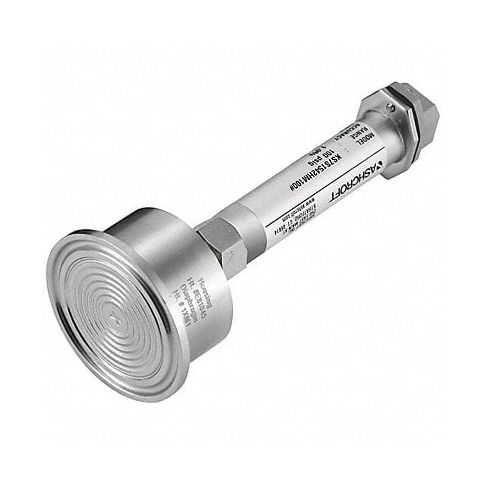

For use in dairy, food, pharmaceutical, and most 3-A sanitary applications, this sanitary pressure vacuum transducer features 316L stainless steel construction, with an electropolished Tri-Clamp diaphragm. The polysilicon bridge and integral metal diaphragm are both unaffected by shock, vibration, or mounting position.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 316 Stainless Steel
- Range Values - Transmitter 0 to 300
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.00%
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 10 to 36V DC
- Process Connection Size - Transmitter 1 1/2 in
- Process Connection Type - Transmitter Triclamp
- Output - Transmitter 1 to 5V DC
- Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing Stainless Steel
- NEMA Rating 4X
- Max. Pressure (PSI) 600 psi
- Thermal Error +/-0.04% per / Degrees F (-20 Degrees to 168 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: KS7S1515HM300
- MPN: KS7S1515HM300#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Sanitary Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
