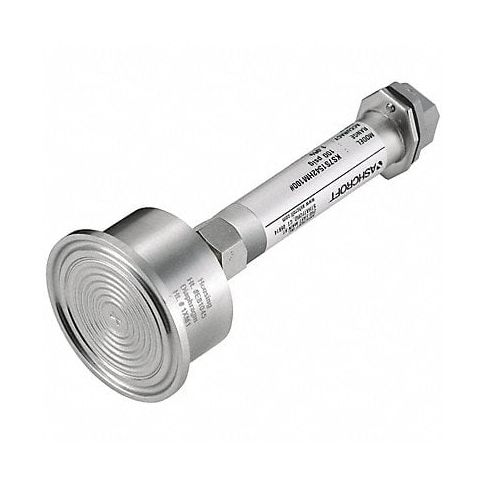

Sanitary Transmitter 30 psi 1 to 5VDC MPN:KS7S1515HM30#
Designed specifically for liquid media transmission, this high accuracy sanitary transmitter is ideal for use in various industries such as food & beverage or pharmaceutical manufacturing where precise pressure measurements are essential. With a wide input range of 1-5 VDC, it provides reliable output and features an easy to clean design ensuring the integrity of your process flow. This transmitter has excellent resistance to chemicals making it durable and long lasting while maintaining accurate and stable performance even in tough conditions where sterility is paramount. Overall, the Sanitary Transmitter 30 psi offers exceptional value for industries that require consistent and reliable pressure measurement without compromising on safety or hygiene.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 316 Stainless Steel
- Range Values - Transmitter 0 to 30
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.00%
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 10 to 36V DC
- Process Connection Size - Transmitter 1 1/2 in
- Process Connection Type - Transmitter Triclamp
- Output - Transmitter 1 to 5V DC
- Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing Stainless Steel
- NEMA Rating 4X
- Max. Pressure (PSI) 60 psi
- Thermal Error +/-0.04% per / Degrees F (-20 Degrees to 168 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: KS7S1515HM30
- MPN: KS7S1515HM30#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Sanitary Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
