Sanitary Transmitter 200 psi 1 to 5VDC MPN:KS7S2015F2200#
SKU
226-CXO-5LTJ7
Sanitary Transmitter 200 psi 1 to 5VDC
Sanitary Transmitter 200 psi 1 to 5VDC is an advanced pressure sensor designed for precision measurement in hygienic applications, suited best for the pharmaceutical or food industry - ensuring safe & reliable operation at all times! With its compact size & rugged construction offering durability even under demanding usage, this transmitter delivers consistent & accurate readings with minimal maintenance required perfect when quality & precision matter. Its ease of calibration feature makes Sanitary Transmitter 200 psi 1 to 5VDC user-friendly while its watertight seal ensures no contamination risk - giving you the utmost confidence in every procedure!

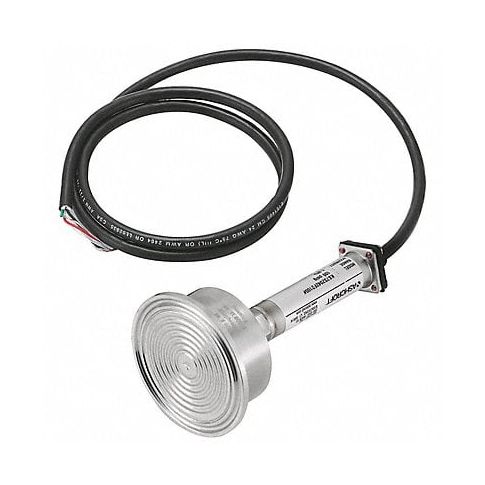

For use in dairy, food, pharmaceutical, and most 3-A sanitary applications, this sanitary pressure vacuum transducer features 316L stainless steel construction, with an electropolished Tri-Clamp diaphragm. The polysilicon bridge and integral metal diaphragm are unaffected by shock, vibration, or mounting position.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 316 Stainless Steel
- Range Values - Transmitter 0 to 200
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.00%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 10 to 36V DC
- Process Connection Size - Transmitter 2 in
- Process Connection Type - Transmitter Triclamp
- Output - Transmitter 1 to 5V DC
- Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing Stainless Steel
- NEMA Rating 4X
- Max. Pressure (PSI) 400 psi
- Thermal Error +/-0.04% per / Degrees F (-20 Degrees to 168 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: KS7S2015F2200
- MPN: KS7S2015F2200#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Sanitary Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 3, 2024 10:15pm UTC
Category: Pressure and Vacuum Measuring
