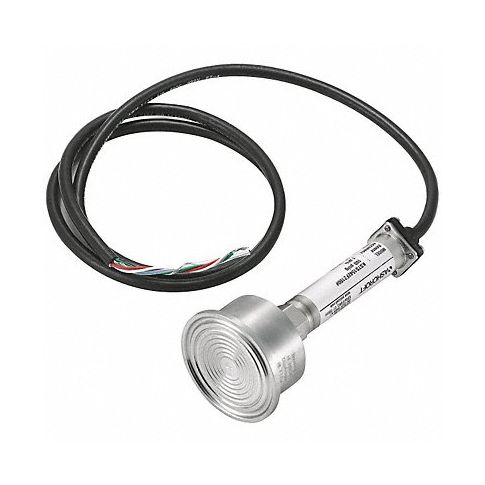

Sanitary Transmitter 30 psi 1 to 5VDC MPN:KS7S1515F230#&VAC
Free Shipping
In Stock
Sanitary Transmitter 30 psi 1 to 5VDC is suitable for users from the food, beverage and pharmaceutical industries who demand high accuracy and sanitation during their operations. Its stainless steel construction ensures durability under harsh conditions, while its threaded connections offer easy integration into existing systems without leaks or contamination concerns. Additionally, the transmitter's temperature compensation feature ensures consistent results even in fluctuating environments, making it ideal for process control and monitoring applications. Its sanitary design prevents buildup or bacteria accumulation, thus being suitable for use in aseptic systems such as filtration, packaging, and storage. Overall, the Sanitary Transmitter 30 psi 1 to 5VDC offers precision engineering, robust construction, and accurate results, making it ideal for process engineers, plant managers or maintenance personnel responsible for monitoring and maintaining sanitary conditions in critical applications.
Technical Specifications
- Transmitter Type Compound Transmitter
- Wetted Materials - Transmitters 316 Stainless Steel
- Range Values - Transmitter 30 to 0 to 30
- Range Units - Transmitter in Hg/psi
- Accuracy - Transmitter +/-1.00%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 10 to 36V DC
- Process Connection Size - Transmitter 1 1/2 in
- Process Connection Type - Transmitter Triclamp
- Output - Transmitter 1 to 5V DC
- Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing Stainless Steel
- NEMA Rating 4X
- Max. Pressure (PSI) 60 psi
- Thermal Error +/-0.04% per / Degrees F (-20 Degrees to 168 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: KS7S1515F230VAC
- MPN: KS7S1515F230#&VAC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Sanitary Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
