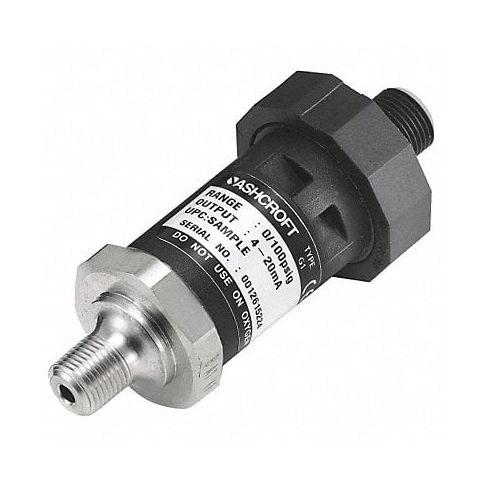

K4651 Pressure Transmitter 0 to 300 psi 1/8 in MPN:G17M0115EW300#
The pressure transmitter provides users with precise and accurate measurements within the temperature range of -40C up to +75C, while offering outstanding stability over a prolonged period, suitable for various industries ranging from oil and gas, food processing or hydraulic manufacturing thus offering reliability when accurate reading is paramount. With a user-friendly interface coupled with the capability of storing multiple calibration points and linearity curve to compensate for variations in pressure conditions offering users flexibility while conducting measurements hence reducing chances of errors leading to efficiency. Additionally, the compact design allows easy installation or use in tight spaces while featuring water and dust resistance providing durability even under challenging environments, thus assuring value for money to users who value precision while seeking reliability in their work.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 300
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 4 Pin M12 Connector
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/8 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 1 to 5V DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Max. Pressure (PSI) 600 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0115EW300
- MPN: G17M0115EW300#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
