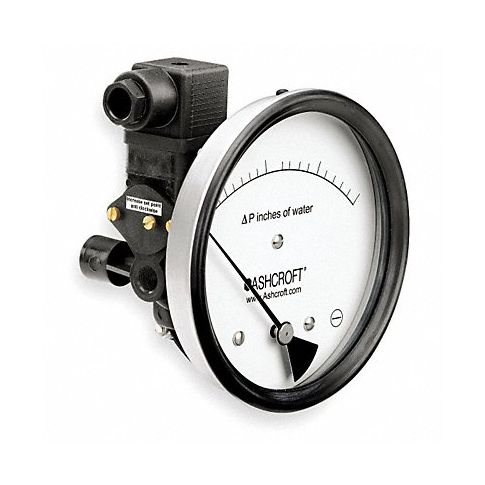

H8425 Pressure Gauge 0 to 3 In H2O MPN:451134EDRQMXV5CYLM3IWD
H8425 Pressure Gauge is an instrument used for measuring the pressure of liquids or gases and indicating it on a dial or digital readout. It features a gauge face that shows both positive and negative pressure as well as current value, making it perfect for reading real-time measurements in various applications like process control and monitoring, air compression testing, hydraulic systems maintenance, industrial manufacturing process etc.. This gauge comes with accurate sensing elements built from stainless steel material ensuring stability and precision even under challenging conditions. Thus the H8425 pressure gauge is a necessary instrument used to monitor important pressures in various industries for ensuring safe operations while optimizing productivity level.
Technical Specifications
- Differential Pressure Gauge Type Differential Pressure Gauge
- Item Differential Pressure Gauge
- Gauge Nominal Dial Size 5 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts PTFE / Buna-N
- Differential Gauge Connection Type FNPT
- Differential Gauge Connection Size 1/8 in
- Gauge Connection Location Back and Side
- Differential Pressure Range Units in wc
- Differential Pressure Range Value 0 to 3
- Gauge Accuracy +/-3.00%
- Body Material Glass Filled Nylon
- Gauge Primary Range Smallest Graduation 0.1
- Diaphragm Material Buna-N
- Piston Material PTFE
- Seal Material Buna-N
- Gauge Operating Temp. Range 0 Degrees to 140 Degrees F
- Rated Total Pressure 35 psi
- Relay Type SPDT
- Contact Rating 0.25A @ 175V AC/V DC
- Dial Material Stainless Steel
- Scale Type Pressure
- Includes Instructions
- Manufacturers Warranty Length 5 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 451134EDRQMXV5CYLM3IWD
- MPN: 451134EDRQMXV5CYLM3IWD
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: IN
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026208000
- GDS Category Name: Dial Differential Pressure Gauges
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
