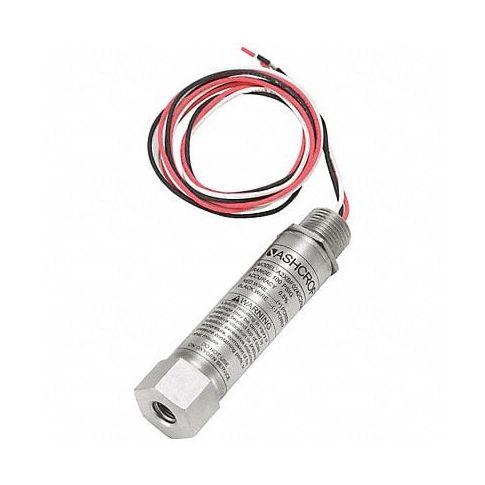

K4691 Pressure Transmitter 0 to 300 psi 1/4 in MPN:A2XBF0242C2300#G
The K4691 pressure transmitter is a versatile tool suitable for various applications such as liquid level, pump control, and process control systems. It operates on the electromechanical principle with an external Bourdon tube movement converted into a mechanical output that is accurately measured by the sensitive element inside the device. Featuring accuracy up to +-0.5% Full Scale (FS) making it precise for critical applications within aerospace and industrial manufacturing environments. It exhibits excellent long term stability due to its high quality materials such as stainless steel construction thus suitable in demanding weather conditions with wide temperature ranges from -20 to 85-degrees Celsius ensuring year round continuous performance. Measuring range spans from 0 to 300psi is ideal for monitoring water pressure in boilers or monitoring hydraulic systems within plant floors thus fitting across multiple industries such as petrochemical refineries and oil & gas plants too!
Technical Specifications
- Transmitter Type Explosion Proof Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 300
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.25%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter FNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 7 and 9
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 600 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A2XBF0242C2300G
- MPN: A2XBF0242C2300#G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
