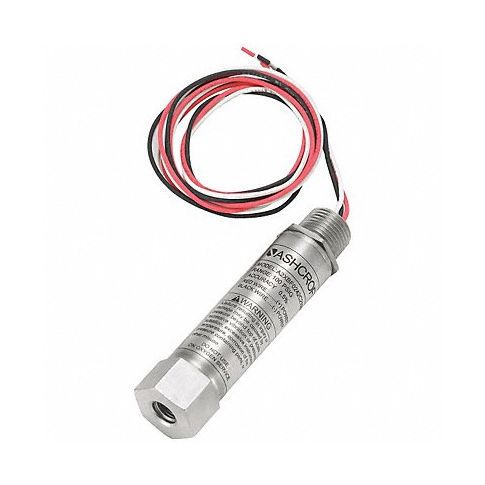

K4691 Pressure Transmitter 0 to 5 psi Range MPN:A2XBF0242C25#G

Technical Specifications

• Transmitter Type Explosion Proof Pressure Transmitter
• Wetted Materials - Transmitters 316L Stainless Steel
• Range Values - Transmitter 0 to 5
• Range Units - Transmitter psi
• Accuracy - Transmitter +/-0.25%
• Electrical Connections - Transmitter 3 ft Cable
• Power Required - Transmitters 12 to 30V DC
• Process Connection Size - Transmitter 1/4 in
• Process Connection Type - Transmitter FNPT
• Output - Transmitter 4 to 20mA DC
• Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
• Safety Rating - Transmitter Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
• Wiring Entry - Transmitter 1/2 in FNPT
• Housing 304 Stainless Steel
• NEMA Rating 7 and 9
• Loop Resistance Dependent on Loop Supply Voltage
• Max. Pressure (PSI) 10 psi
• Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
• Compatible With Any Process Compatible with 316 Stainless Steel
• Includes Instructions
• Manufacturers Warranty Length 1 yr

Manufacturer Details

• Manufacturer: Ashcroft
• Condensed Mfg Number: A2XBF0242C25G
• MPN: A2XBF0242C25#G

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026204000
• GDS Category Name: Standard Pressure and Vacuum Transmitters
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 41112107
• UNSPSC Class ID: 21
• UNSPSC Commodity Name: Transducers
• UNSPSC Commodity ID: 07
• UNSPSC Commodity Name: Electro pneumatic transducers
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
