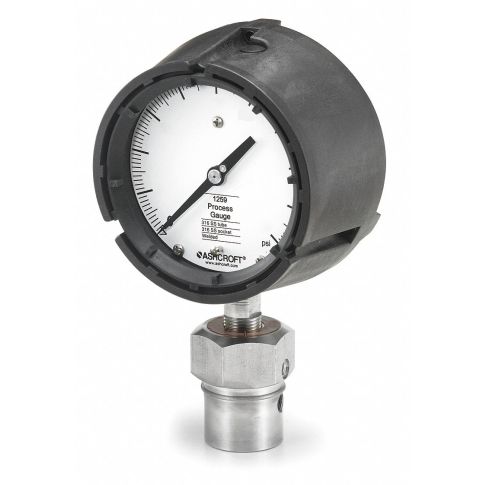

K4232 Pressure Gauge 30 Hg to 60 psi 4-1/2In MPN:451259SD04L/50312SS04TXCG60#/VAC
With precision engineering, K4232 pressure gauge boasts superior quality with its 30 Hg to 60 PSI measurement range suitable for a variety of industries such as aviation or plumbing sectors where the accuracy and reliability are critical for operational safety. Its robust construction from brass material coupled with a protective lacquer coating ensures protection against corrosion or damage from rough handling enhancing its long-lasting durability. Offering easy readability of 0-60 psi in increments of 2 psi, this gauge stands out for featuring an external lock screw that secures the pointer, prevents tampering, or accidental changes to reading while providing users with consistent and dependable pressure measurements, ideal for heavy-duty use in rugged work environments where accurate readings are a must. With its sturdy design combined with its exceptional accuracy make it the perfect choice when it comes to reliable pressure measurement at an affordable price.
Technical Specifications
- Item Compound Gauge
- Gauge Application Process
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type FNPT
- Gauge Connection Size 1/2 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units in Hg/psi
- Gauge Primary Range Values -30 to 0 to 60
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Compound Gauge
- Gauge Panel Mountable Yes
- Gauge Mounting Method Surface
- Liquid Filled No
- Gauge Primary Range Smallest Graduation 1/1
- Gauge Case Material Thermoplastic
- Gauge Case Color Black
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316 Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316 Stainless Steel
- Gauge Lens Material Glass
- Basic Gauge Lens Material Glass
- Operating Temp. Range 0 Degrees to 150 Degrees F
- Characteristics Glycerin Filled Seal
- Calibration Certificate Included No
- Series 1259 with 312SS seal
- Includes 316 Stainless Steal Seal with Flushing Connection
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 451259SD04L50312SS04TXCG60VAC
- MPN: 451259SD04L/50312SS04TXCG60#/VAC
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Dial Pressure Gauges with Diaphragm Seal
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
