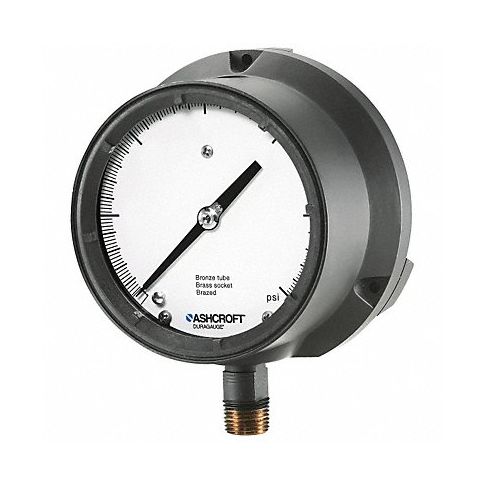

K4219 Pressure Gauge 0 to 200 psi 4-1/2In MPN:451379SSL04L200#
K4219 Pressure Gauge 0 to 200 psi 4-1/2In
The K4220 pressure gauge encompasses a durable design coupled with high precision measurements ranging from zero to two hundred pounds per square inch providing a wide measurement range suitable for diverse applications within professional and industrial setups such as hydraulics or pneumatics. Its substantial four point five inches dial face provides visibility in varying light conditions while its stainless steel case ensures longevity withstanding harsh weather conditions, featuring an affordable option equipped with reliable Bourdon tube movement suited for calibrating and monitoring tasks on multiple platforms, hence, offering superior value making it adaptable across diverse industries.
This gauge features plastic case construction to resist corrosion and impact in demanding applications.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Stainless Steel
- Gauge Connection Type MNPT
- Gauge Connection Size 1/2 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 200
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 20
- Gauge Case Material Phenolic/Thermoplastic
- Gauge Primary Range Numbered Graduations 20
- Gauge Case Color Black
- Basic Gauge Socket Material Stainless Steel
- Gauge Socket Material 316L Stainless Steel
- Basic Gauge Sensor Material Stainless Steel
- Gauge Sensor Material 316L Stainless Steel
- Gauge Lens Material Acrylic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range 0 Degrees to 150 Degrees F
- For Use With Media Compatible with 316L Stainless Steel
- Calibration Certificate Included No
- Series 1379SS
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 451379SSL04L200
- MPN: 451379SSL04L200#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B007I9PK8S, B00NG3F0US, B00NG3F3LY
Product info last updated on April 4, 2024 8:47am UTC Category: Pressure and Vacuum Measuring
