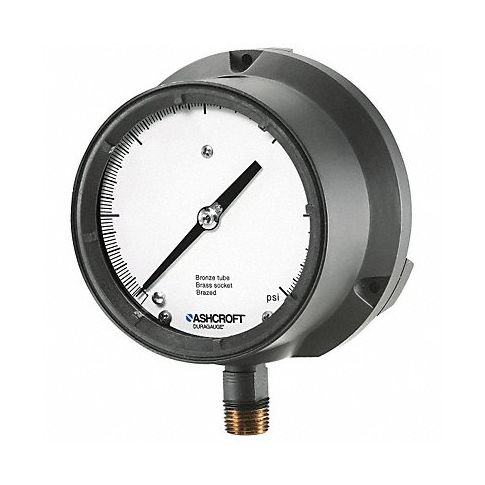

K4216 Pressure Gauge 0 to 300 psi 4-1/2In MPN:451379ASL04L300#
SKU
226-CXG-5RYC9
K4216 Pressure Gauge 0 to 300 psi 4-1/2In
This pressure gauge offers precision measurements for diverse industries with a sturdy construction that is built to last in harsh environments. With a 4-1/2 inch diameter face, the dial is easy to read from a distance and is designed to provide accurate readings within its pressure range of 0 to 300 psi. Its corrosion-resistant stainless steel wetted parts ensure long-lasting durability, making it ideal for both indoor and outdoor applications such as hydraulic systems or chemical processes.
This gauge features plastic case construction to resist corrosion and impact in demanding applications.
Technical Specifications
- Item Pressure Gauge
- Gauge Application General Purpose
- Gauge Nominal Dial Size 4 1/2 in
- Basic Gauge Case Material Plastic
- Basic Gauge Wetted Parts Brass / Bronze
- Gauge Connection Type MNPT
- Gauge Connection Size 1/2 in
- Gauge Connection Location Bottom
- Gauge Primary Range Units psi
- Gauge Primary Range Values 0 to 300
- Gauge Accuracy +/-0.50%
- Pressure and Vacuum Gauge Type Pressure Gauge
- Gauge Panel Mountable No
- Liquid Filled Yes
- Gauge Primary Range Smallest Graduation 2
- Gauge Case Material Phenolic/Thermoplastic
- Gauge Case Color Black
- Basic Gauge Socket Material Brass
- Gauge Socket Material Brass
- Basic Gauge Sensor Material Bronze
- Gauge Sensor Material Phosphor Bronze
- Gauge Lens Material Acrylic
- Gauge Filled With Glycerin
- Basic Gauge Lens Material Plastic
- Operating Temp. Range 0 Degrees to 150 Degrees F
- For Use With Media Compatible with Bronze
- Calibration Certificate Included No
- Series 1379AS
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: 451379ASL04L300
- MPN: 451379ASL04L300#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Commercial Industrial and Process Dial Pressure G
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112403
- UNSPSC Class ID: 24
- UNSPSC Commodity Name: Pressure measuring and control instruments
- UNSPSC Commodity ID: 03
- UNSPSC Commodity Name: Pressure indicators
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 8:47am UTC
Category: Pressure and Vacuum Measuring
