Sanitary Transmitter 300 psi 1 to 5VDC MPN:KS7S1515F2300#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5LTJ2

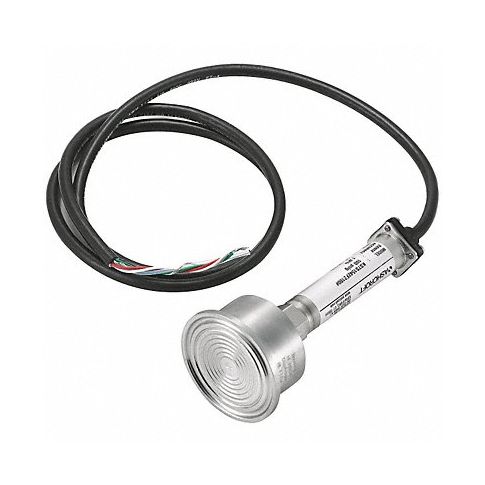

Sanitary Transmitter 300 psi 1 to 5VDC
The sanitary transmitter is an advanced pressure measurement solution designed specifically for the food & beverage industry ensuring accurate pressure readings even at high or low temperatures. Its hygienic design offers ease of cleaning reducing the risk of bacterial contamination making it ideal for processing systems handling sensitive materials. With its pressure range up to 300psi, and 1-5Vdc output signal & field convertible option the transmitter offers flexibility for a broad range of applications offering unparalleled reliability in monitoring process fluid pressures benefiting various industries adhering to strict hygiene standards.
For use in dairy, food, pharmaceutical, and most 3-A sanitary applications, this sanitary pressure vacuum transducer features 316L stainless steel construction, with an electropolished Tri-Clamp diaphragm. The polysilicon bridge and integral metal diaphragm are both unaffected by shock, vibration, or mounting position.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 316 Stainless Steel
- Range Values - Transmitter 0 to 300
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-1.00%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 10 to 36V DC
- Process Connection Size - Transmitter 1 1/2 in
- Process Connection Type - Transmitter Triclamp
- Output - Transmitter 1 to 5V DC
- Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing Stainless Steel
- NEMA Rating 4X
- Max. Pressure (PSI) 600 psi
- Thermal Error +/-0.04% per / Degrees F (-20 Degrees to 168 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: KS7S1515F2300
- MPN: KS7S1515F2300#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Sanitary Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 8:46am UTC
Category: Pressure and Vacuum Measuring
