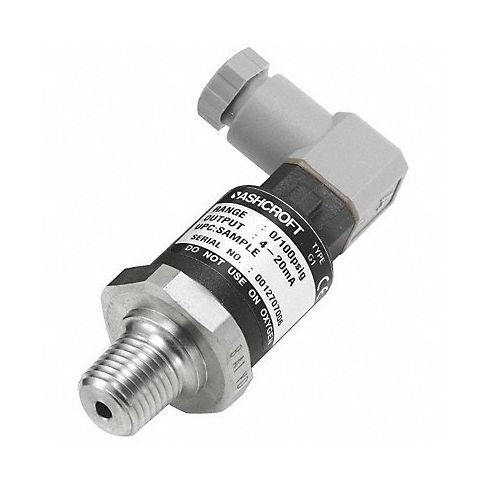

K4714 Pressure Transmitter -14.7 psi to 30 psi MPN:G17M0215M1VAC/30#

Technical Specifications

• Transmitter Type Compound Transmitter
• Wetted Materials - Transmitters Stainless Steel
• Range Values - Transmitter 30 to 0 to 30
• Range Units - Transmitter in Hg/psi
• Accuracy - Transmitter +/-0.50% Full Scale
• Electrical Connections - Transmitter 4 Pin Mini-DIN Connector
• Power Required - Transmitters 9 to 36V DC
• Process Connection Size - Transmitter 1/4 in
• Process Connection Type - Transmitter MNPT
• Output - Transmitter 1 to 5V DC
• Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
• Wiring Entry - Transmitter 1/2 in FNPT
• Housing 304 Stainless Steel
• Max. Pressure (PSI) 60 psi
• Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
• Compatible With Any Process Compatible with 316 Stainless Steel
• Includes Instructions
• Manufacturers Warranty Length 1 yr

Manufacturer Details

• Manufacturer: Ashcroft
• Condensed Mfg Number: G17M0215M1VAC30
• MPN: G17M0215M1VAC/30#

Label Details

• Hazardous Material: N
• Green Material Flag: N
• Country of Origin: US
• CA Prop 65 Wht Label: N

Classification Details

• Harmonization Code: 9026204000
• GDS Category Name: Standard Pressure and Vacuum Transmitters
• GDS Family Name: Pressure and Vacuum Measuring
• GDS Segment Name: Test Instruments
• UNSPSC: 41112107
• UNSPSC Class ID: 21
• UNSPSC Commodity Name: Transducers
• UNSPSC Commodity ID: 07
• UNSPSC Commodity Name: Electro pneumatic transducers
• UNSPSC Family ID: 11
• UNSPSC Family Name: Measuring and observing and testing instruments
• UNSPSC Segment ID: 41
• UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment

Shipping Details

• Not For Sale In: HI AK PR
