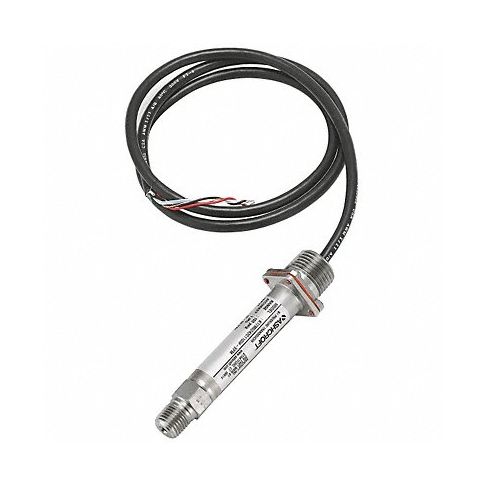

D3899 Pressure Transmitter 0 to 500 psi 1/4 in MPN:K17MO242C1500#XFM
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DER0
D3899 Pressure Transmitter 0 to 500 psi 1/4 in
The D3899 is a state-of-the-art pressure transmitter designed to measure pressures ranging from 0 to 500psi with remarkable accuracy, making it suitable for oil and gas industry or any other applications demanding precise measurements. This versatile device offers outstanding value by providing exceptional performance at an affordable cost while boasting a rugged construction that can withstand tough conditions.
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters 316 Stainless Steel
- Range Values - Transmitter 0 to 500
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -20 Degrees to 180 Degrees F
- Safety Rating - Transmitter Class I, Div. 2, Groups A, B, C, D
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing Stainless Steel
- NEMA Rating 4X, Non-Incendive
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 1,000 psi
- Thermal Error +/-.04% per / Degrees F from -20 Degrees to 168 Degrees F
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: K17MO242C1500XFM
- MPN: K17MO242C1500#XFM
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
