K4705 Pressure Transmitter 0 to 200 psi 1/4 in MPN:G17M0242F2200#
SKU
226-CXG-5DEK4

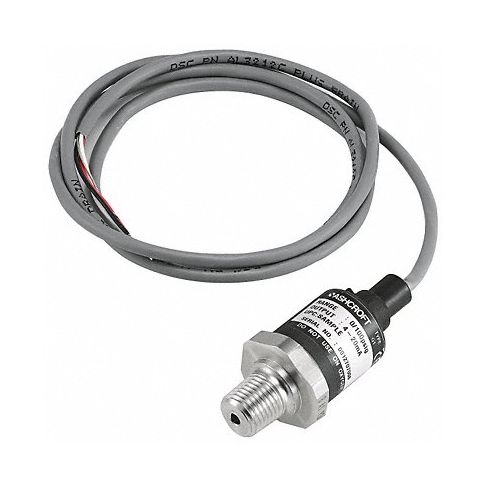

K4705 Pressure Transmitter 0 to 200 psi 1/4 in
K4705 pressure transmitter's precise pressure measurement range of -1 to 999 psi allows professionals across industries to efficiently monitor their processes and maintain optimum levels of operation. It caters to customers in pharmaceutical, manufacturing, HVAC systems, process control, and liquid level measurement applications, offering accurate readings in a compact design compatible with various sensors. With temperature compensation ensured for accurate measurements even under varying temperatures (-20 to 65C), the K4705 proves essential in diverse pressure-sensitive environments for professionals seeking reliable performance.
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 200
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 400 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0242F2200
- MPN: G17M0242F2200#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08WS5PB47
Product info last updated on April 4, 2024 7:47am UTC Category: Pressure and Vacuum Measuring
