K4705 Pressure Transmitter 0 to 100 psi 1/4 in MPN:G17M0242F2100#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DEK3

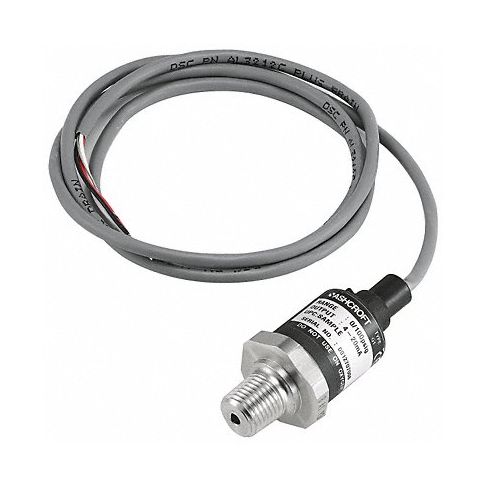

K4705 Pressure Transmitter 0 to 100 psi 1/4 in
The Ashcroft K4705 Pressure Transmitter is a versatile device designed for accurate measurement of pressure in various applications across different industries. With its thin film technology, this transmitter reduces noise levels and temperature coefficients, delivering high-precision results with reduced errors. It features compatibility with most types of fluids and can be mounted in confined spaces due to its compact design. The K4705 is ideal for monitoring pressure levels in hydraulic systems, process control, and automotive applications. Its accurate readings help improve efficiency and ensure safety, making it a must-have instrument for anyone looking to maintain consistent pressure conditions in their operation.
Top product features:
- High-precision results with reduced errors
- Compatible with most types of fluids
- Can be mounted in confined spaces
Top product applications:
- Monitoring pressure levels in hydraulic systems
- Process control applications
- Automotive applications
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 100
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 200 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0242F2100
- MPN: G17M0242F2100#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08WRTMXMV
Product info last updated on April 4, 2024 7:47am UTC Category: Pressure and Vacuum Measuring
