K4704 Pressure Transmitter 0 to 60 psi 1/4 in MPN:G17M0242F260#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DEK2

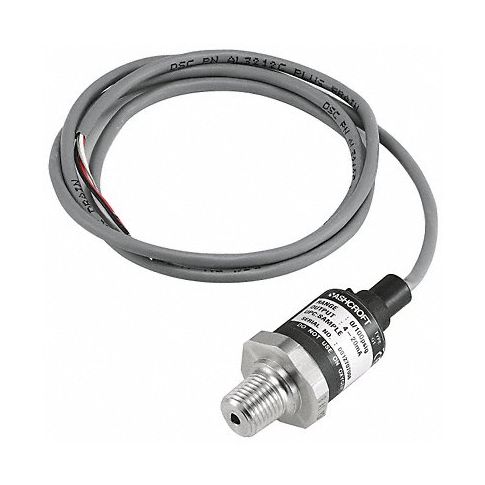

K4704 Pressure Transmitter 0 to 60 psi 1/4 in
The K4704 Pressure Transmitter is an ultra-compact, high accuracy sensor designed to measure pressure levels in a variety of applications. With its thin film technology, this device offers superior performance and accuracy, while also minimizing noise and temperature coefficient errors. This pressure transmitter is compatible with most fluid types and can be easily mounted in confined spaces. The K4704 offers reliable measurements in extreme environments, making it the ideal choice for oil & gas, aerospace, chemical, and automotive industries.
Top product features:
- Thin film technology reduces noise and temperature coefficients
- Ultra-compact design allows for easy mounting in confined spaces
- High accuracy pressure measurements make it ideal for extreme environments
Top product applications:
- Oil & gas industry for pressure monitoring in pipelines and equipment
- Aerospace sector for aircraft cabin air pressure regulation systems
- Chemical industry for measuring reactor and tank pressures
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 60
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 120 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0242F260
- MPN: G17M0242F260#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08WS3LWT9
Product info last updated on April 4, 2024 7:47am UTC Category: Pressure and Vacuum Measuring
