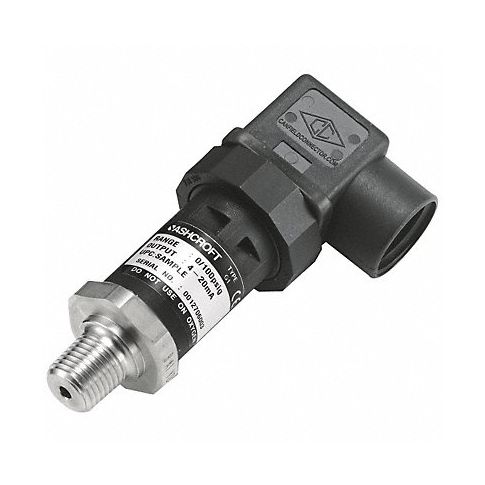

K4698 Pressure Transmitter 0 to 3000 psi 1/4 MPN:G17M0242CD3000#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DED2
K4698 Pressure Transmitter 0 to 3000 psi 1/4
K4668 boasts high precision pressure measurement capabilities ideal for industrial control settings like oil rigs or gas compressors as well as laboratory applications in research & development. Operating in harsh environments -25F to 158F (-30C to 70C), this transmitter handles temperature fluctuations seamlessly without affecting its +/-0.08% FS accuracy. Able to work with numerous fluid types such as liquids, gases or steam, K4668's stainless steel design offers an enduring, robust solution that serves machinery engineers seeking accurate pressure control in their heavy-duty equipment across multiple industries including mining, chemicals and petrochemicals.
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 3000
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 6,000 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0242CD3000
- MPN: G17M0242CD3000#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:47am UTC
Category: Pressure and Vacuum Measuring
