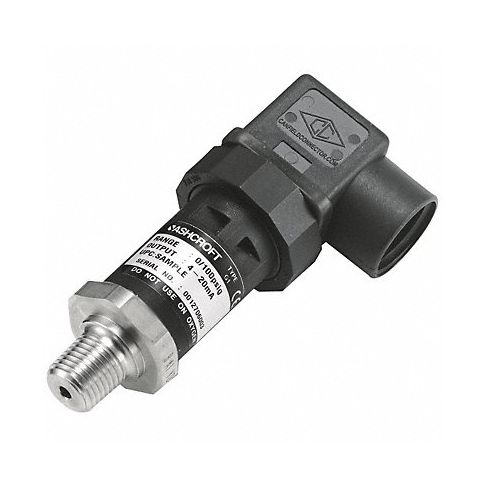

K4698 Pressure Transmitter 0 to 500 psi 1/4 in MPN:G17M0242CD500#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DED0
K4698 Pressure Transmitter 0 to 500 psi 1/4 in
The K4698 is a state-of-the-art pressure transmitter designed to measure pressures ranging from 0 to 500psi with exceptional accuracy. It features an easy-to-read quarter inch display screen, allowing users to monitor changes in pressure levels easily. Its affordable price makes it an excellent investment for applications requiring precise measurements and accurate monitoring, especially those within the pressure/vacuum measuring field. The K4698 offers outstanding performance at a budget-friendly cost while ensuring long-lasting durability even under challenging conditions.
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 500
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 1,000 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0242CD500
- MPN: G17M0242CD500#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B07VN9NPDL
Product info last updated on April 4, 2024 7:47am UTC Category: Pressure and Vacuum Measuring
