K4698 Pressure Transmitter 0 to 300 psi 1/4 in MPN:G17M0242CD300#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DEA9

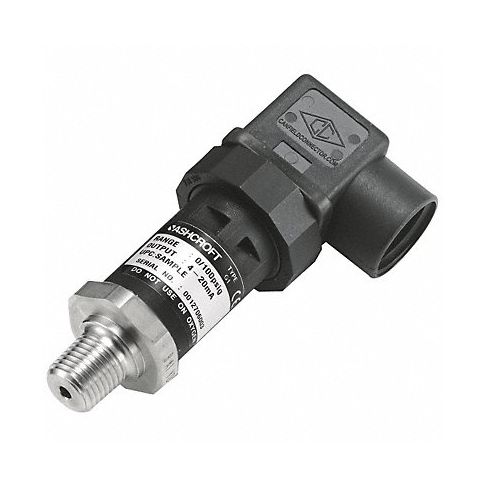

K4698 Pressure Transmitter 0 to 300 psi 1/4 in
Introducing Ashcroft K4698 Pressure Transmitter, the perfect tool for measuring pressure in harsh environments! With its compact design and thin-film technology, this transmitter offers high accuracy and low noise levels, making it ideal for use in industrial settings. The transmitter is compatible with most fluids and can be mounted easily even in confined spaces. Its rugged construction ensures durability and reliability over time. The pressure range of 0 to 300 psi makes it suitable for a wide variety of applications, including oil and gas exploration, power generation, and chemical processing. With its impressive accuracy, this transmitter is a game-changer for industries that require precise pressure measurement!
Top product features:
- Thin film technology for low noise and temperature coefficients
- Compatible with most fluids
- Rugged construction for durability and reliability
Top product applications:
- Measuring pressure in harsh environments
- Monitoring fluid pressure in industrial systems
- Detecting leaks or abnormal pressure levels in pipelines
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 300
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 600 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0242CD300
- MPN: G17M0242CD300#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:47am UTC
Category: Pressure and Vacuum Measuring
