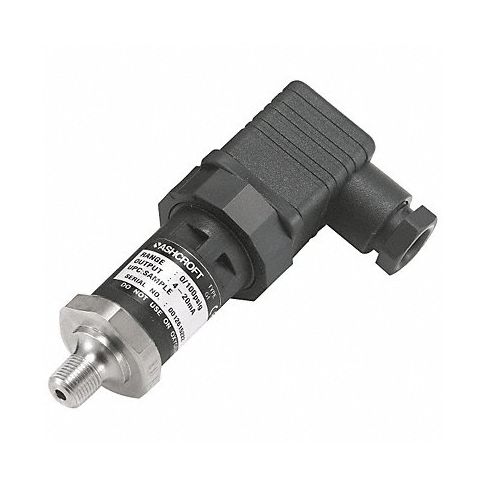

K4696 Pressure Transmitter 0 to 3000 psi 1/8 MPN:G17M0142DO3000#
K4696 Pressure Transmitter is a cost-effective tool ideal for manufacturing companies seeking to monitor pressure levels in their production processes while ensuring consistent performance even under harsh work conditions hence providing accurate readings required for control systems. The device uses piezo resistive sensing element & diaphragm less design that can endure vibrations and shocks making it suitable for various industries including hydraulic power units, food and beverages, HVAC systems as well as industrial process controls. K4696 delivers a 4-20 mA or voltage output signal with stainless steel process connection for durability while being compatible with different industry standard protocols hence easy integration into existing systems providing accurate measurements over its ranged limit of 0-3000 psi. With robust, reliable and simple installation K4696 Pressure Transmitter serves as an ideal solution for companies looking for cost-effective pressure monitoring systems while increasing productivity through continuous measurements across different industries within the manufacturing arena.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 3000
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/8 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 6,000 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0142DO3000
- MPN: G17M0142DO3000#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
