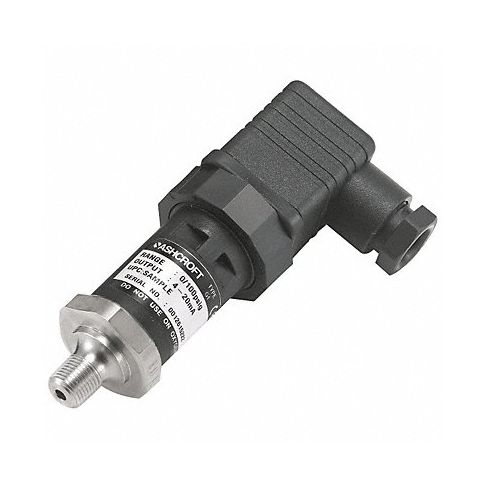

K4696 Pressure Transmitter 0 to 500 psi 1/8 in MPN:G17M0142DO500#
The K4696 is a precision pressure transmitter specifically designed for the measurement of pressures between 0 and 500 psi within a +/- 0.5% full scale accuracy range, making it an essential tool in various industries requiring precise pressure control or monitoring systems. Its compact design with DIN-rail mounting enables easy installation onto panels without occupying extra space. The device comes precalibrated and equipped with an optional adjustable auto-zero feature, which can be manually set for a user's specific reference pressure. Featuring compatibility with multiple connector options including screwed or flanged configurations for versatile connections to pipes or systems. Its ability to tolerate high temperatures of up to 200C ensures durability and long-term reliability. K4696's low cost and easy maintenance make it an ideal choice for industries such as HVAC, refrigeration, hydraulics or pneumatics where accurate monitoring of pressure levels is vital to maintaining smooth operation and preventing potential hazards caused by excess or vacuum pressure build-up.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 500
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/8 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 1,000 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0142DO500
- MPN: G17M0142DO500#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
