K4698 Pressure Transmitter 0 to 300 psi 1/4 in MPN:G17M0242DO300#
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DDU3

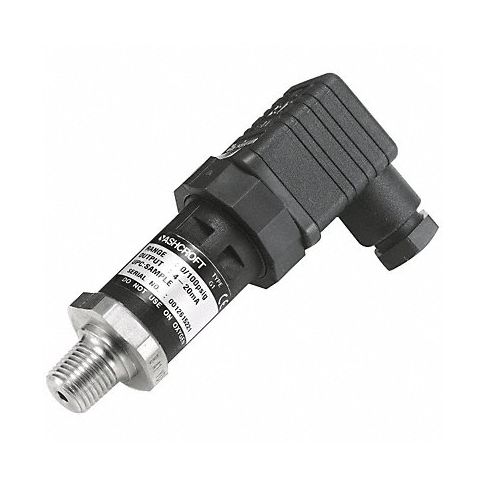

K4698 Pressure Transmitter 0 to 300 psi 1/4 in
K4698 pressure transmitter provides accurate pressure readings within a 0 to 300psi full-scale range, offering superior performance for demanding applications. Features rugged construction and resistance against corrosion from various chemicals makes it ideal for use in harsh environments. Compatible with PLCs and digital displays via the standard 4-20mA output signal, K4698 provides precise measurements for monitoring process lines, ensuring consistent calibration across precision equipment utilized within laboratory or manufacturing settings; offering reliable results and increased efficiency every step of the way.
This compact transmitter features thin film technology that helps reduce noise levels and temperature coefficients. It also helps to achieve a high level of accuracy. Compatible with most types of fluids. Can be mounted in confined spaces.
Technical Specifications
- Transmitter Type Pressure Transmitter
- Wetted Materials - Transmitters Stainless Steel
- Range Values - Transmitter 0 to 300
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.50% Full Scale
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 9 to 36V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 600 psi
- Thermal Error +/-3% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: G17M0242DO300
- MPN: G17M0242DO300#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Related ASINs: B08WR7GZ2S
Product info last updated on April 4, 2024 7:47am UTC Category: Pressure and Vacuum Measuring
