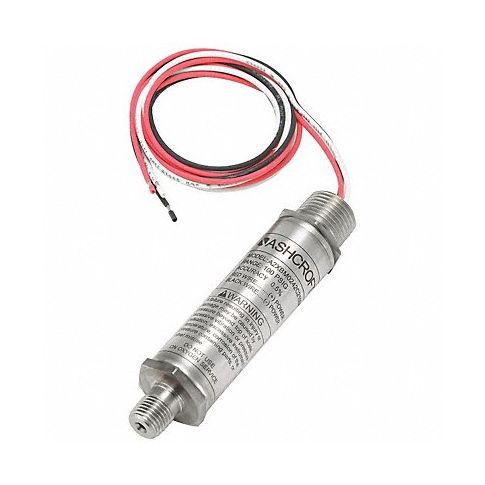

K4692 Pressure Transmitter 0 to 5000 psi 1/4 MPN:A2XBM0242C25000#G
The K4692 Pressure Transmitter is a precision-engineered device that delivers accurate pressure measurement solutions for professionals working across numerous industries, including aerospace, automotive, energy, manufacturing, and chemical processing. Constructed from high-quality materials to withstand harsh environments, this versatile transmitter offers an extensive measuring range of 0 to 5000 psi and 1/4 NPT process connection for convenient installation. With its high sensitivity, it provides consistent readings in both low and high pressure applications while displaying data in a clear, easy-to-read digital format. Additionally, the K4692's user-friendly interface and durable design make it the ideal choice for industrial professionals seeking a reliable and long-lasting pressure measurement tool.
Technical Specifications
- Transmitter Type Explosion Proof Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 5000
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.25%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 7 and 9
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 7,500 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A2XBM0242C25000G
- MPN: A2XBM0242C25000#G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
