K4692 Pressure Transmitter 0 to 1000 psi 1/4 MPN:A2XBM0242C21000#G
SKU
226-CXG-5DDT5

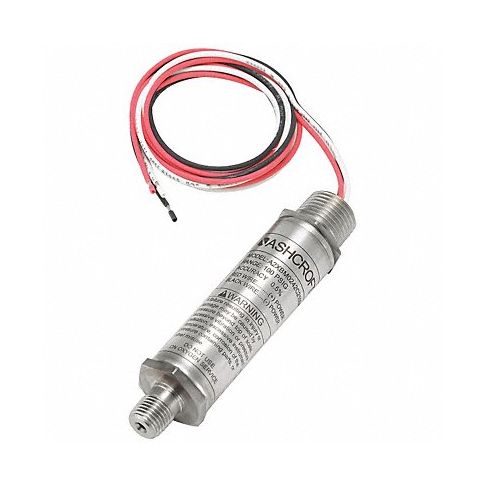

K4692 Pressure Transmitter 0 to 1000 psi 1/4
The K4692 Pressure Transmitter is a precision measuring tool designed for accurate and reliable measurement of pressure from vacuum to high pressures in various industrial applications. With a range of 0 to 1000 psi, this versatile transmitter can measure pressure accurately at both low and high end levels with great stability. Its compact design and ability to withstand harsh environmental conditions make it an ideal solution for industries such as chemical processing, hydraulics, and oil & gas exploration, among others. Moreover, its repeatable accuracy over time and cost-effectiveness make it a popular choice for customers looking to upgrade their existing measurement systems or invest in new ones.
This explosionproof pressure transmitter is digitally compensated and suitable for any process compatible with 316 stainless steel.
Technical Specifications
- Transmitter Type Explosion Proof Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 1000
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.25%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 7 and 9
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 2,000 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A2XBM0242C21000G
- MPN: A2XBM0242C21000#G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:47am UTC
