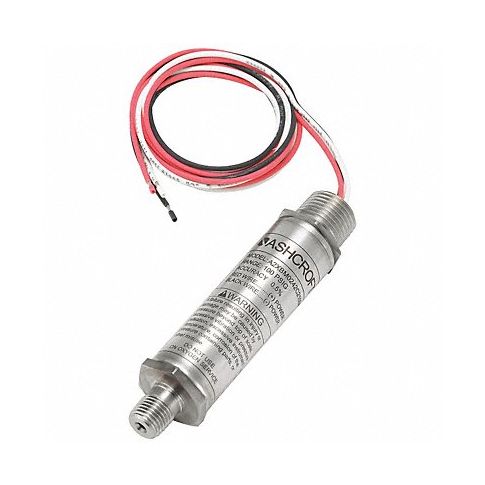

K4692 Pressure Transmitter 0 to 300 psi 1/4 in MPN:A2XBM0242C2300#G
Free Shipping
In Stock
Unibit's pressure transmitter is a versatile solution for diverse industrial process measurement applications requiring precise monitoring of pressure fluctuations in confined spaces with compact dimensional footprints. Designed for both pressure or vacuum conditions, this pressure transmitter features an operating range from 0 to 300 psi allowing professionals from various industries including chemical plants, oil & gas refineries or water treatment facilities accurate and reliable measurements without the need of recalibration. Its small form factor (1/4 inch diameter) ensures effortless mounting within tight corners or constricted locations with its built-in flush diaphragm design preventing pressure from leaking or being disturbed during operation making it a preferred choice among automation engineers and technicians seeking dependable solutions for demanding industrial processes.
Technical Specifications
- Transmitter Type Explosion Proof Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 300
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.20%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 7 and 9
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 600 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A2XBM0242C2300G
- MPN: A2XBM0242C2300#G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
