K4691 Pressure Transmitter 0 to 5000 psi 1/4 MPN:A2XBF0242C25000#G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DDP3

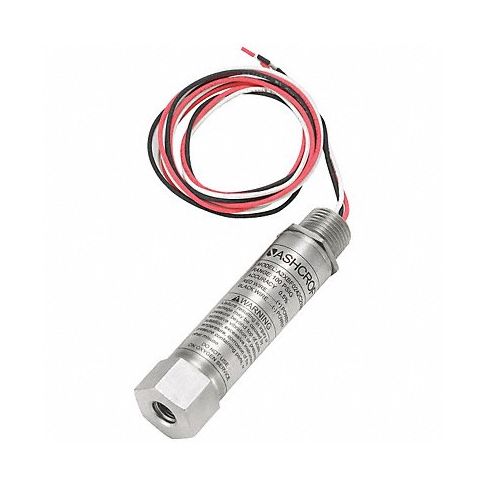

K4691 Pressure Transmitter 0 to 5000 psi 1/4
The K4691 Pressure Transmitter is a top-quality device designed for professionals operating within laboratory and scientific environments. It delivers accurate pressure measurements within the extensive range of 0 to 5000 psi, ensuring precise results in diverse applications such as fluidics testing, gas analysis or material stress monitoring. Constructed from sturdy materials, it can withstand harsh conditions common in labs and scientific settings. Furthermore, its compact size, 1/4 NPT process connection and digital display make it convenient to use and read. The K4691's high accuracy and reliability make it an essential tool for any professional working in lab or scientific equipment industries.
This explosionproof pressure transmitter is digitally compensated and suitable for any process compatible with 316 stainless steel.
Technical Specifications
- Transmitter Type Explosion Proof Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 5000
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.25%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter FNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 7 and 9
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 7,500 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A2XBF0242C25000G
- MPN: A2XBF0242C25000#G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:47am UTC
Category: Pressure and Vacuum Measuring
