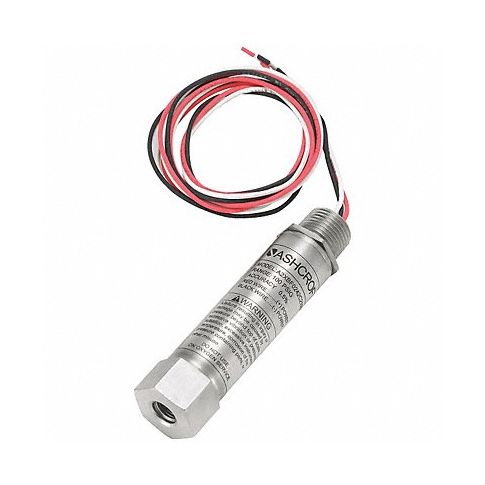

K4691 Pressure Transmitter 0 to 3000 psi 1/4 MPN:A2XBF0242C23000#G
Discount: See in Cart
Free Shipping
In Stock
Free Shipping
In Stock
SKU
226-CXG-5DDP2
K4691 Pressure Transmitter 0 to 3000 psi 1/4
The pressure transmitter is ideal for use in various industries that require accurate and precise measurement of pressure, including chemical, oil & gas, power, food & beverage, water & wastewater, and HVAC. Its ability to monitor both pressure and vacuum makes it suitable for applications involving standard pressure ranges. This device can be utilized by professionals such as engineers, technicians, maintenance personnel or plant managers who require a reliable tool to maintain optimal operating conditions in their facilities.
This explosionproof pressure transmitter is digitally compensated and suitable for any process compatible with 316 stainless steel.
Technical Specifications
- Transmitter Type Explosion Proof Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 3000
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.25%
- Electrical Connections - Transmitter 3 ft Cable
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/4 in
- Process Connection Type - Transmitter FNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, Div. 1 and 2, Groups A, B, C, D; Class I and II, Div 1 and 2, Groups E, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 7 and 9
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 6,000 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A2XBF0242C23000G
- MPN: A2XBF0242C23000#G
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:47am UTC
Category: Pressure and Vacuum Measuring
