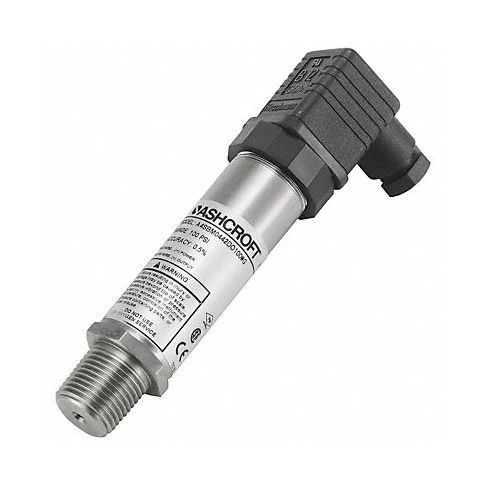

K4693 Pressure Transmitter 0 to 1000 psi IP65 MPN:A4BCM0442D01000#
The K4693 Pressure Transmitter from Ashcroft is an ideal choice for users looking for accurate measurements in harsh environments. With a range of 0 to 1000 psi and intrinsically safe design, this transmitter can withstand extreme conditions while delivering precise readings. Its wetted materials are made of corrosion-resistant 316L stainless steel, ensuring durability and longevity. The digitally compensated and intrinsically safe design provides high accuracy and reliability in any process that is compatible with 316 stainless steel. The K4693 Pressure Transmitter is suitable for various applications such as oil and gas, chemical, pharmaceutical, and wastewater industries, providing users with the ability to monitor pressure levels accurately in their process. Invest in the Ashcroft K4693 Pressure Transmitter and ensure accurate readings in your operations.
Top product features:
- Intrinsically Safe Design ensures safety in hazardous environments.
- Digitally Compensated delivers high accuracy and reliability in measurements.
- Suitable for 316 Stainless Steel Processes compatibility with various industries and applications.
Top product applications:
- Oil and Gas Industry Monitoring pressure levels in drilling, refining, and distribution processes.
- Chemical Industry Measuring pressure in reaction vessels, reactors, and separation equipment.
- Wastewater Treatment Plants Controlling and monitoring wastewater pressure levels during treatment processes.
Technical Specifications
- Transmitter Type Intrinsically Safe Pressure Transmitter
- Wetted Materials - Transmitters 316L Stainless Steel
- Range Values - Transmitter 0 to 1000
- Range Units - Transmitter psi
- Accuracy - Transmitter +/-0.25%
- Electrical Connections - Transmitter 4 Pin Hirschmann Style A DIN 43650-A Connector
- Power Required - Transmitters 12 to 30V DC
- Process Connection Size - Transmitter 1/2 in
- Process Connection Type - Transmitter MNPT
- Output - Transmitter 4 to 20mA DC
- Operating Temp. - Transmitter -40 Degrees to 257 Degrees F
- Safety Rating - Transmitter Class I, II and III, Div. 1 and 2, Groups A, B, C, D, F, G
- Wiring Entry - Transmitter 1/2 in FNPT
- Housing 304 Stainless Steel
- NEMA Rating 4X
- Loop Resistance Dependent on Loop Supply Voltage
- Max. Pressure (PSI) 2,000 psi
- Thermal Error +/-2% (-4 Degrees to 185 Degrees F)
- Compatible With Any Process Compatible with 316 Stainless Steel
- Includes Instructions
- Manufacturers Warranty Length 1 yr
Manufacturer Details
- Manufacturer: Ashcroft
- Condensed Mfg Number: A4BCM0442D01000
- MPN: A4BCM0442D01000#
Label Details
- Hazardous Material: N
- Green Material Flag: N
- Country of Origin: US
- CA Prop 65 Wht Label: N
Classification Details
- Harmonization Code: 9026204000
- GDS Category Name: Standard Pressure and Vacuum Transmitters
- GDS Family Name: Pressure and Vacuum Measuring
- GDS Segment Name: Test Instruments
- UNSPSC: 41112107
- UNSPSC Class ID: 21
- UNSPSC Commodity Name: Transducers
- UNSPSC Commodity ID: 07
- UNSPSC Commodity Name: Electro pneumatic transducers
- UNSPSC Family ID: 11
- UNSPSC Family Name: Measuring and observing and testing instruments
- UNSPSC Segment ID: 41
- UNSPSC Segment Name: Laboratory and Measuring and Observing and Testing Equipment
Shipping Details
- Not For Sale In: HI AK PR
Product info last updated on April 4, 2024 7:47am UTC Category: Pressure and Vacuum Measuring
